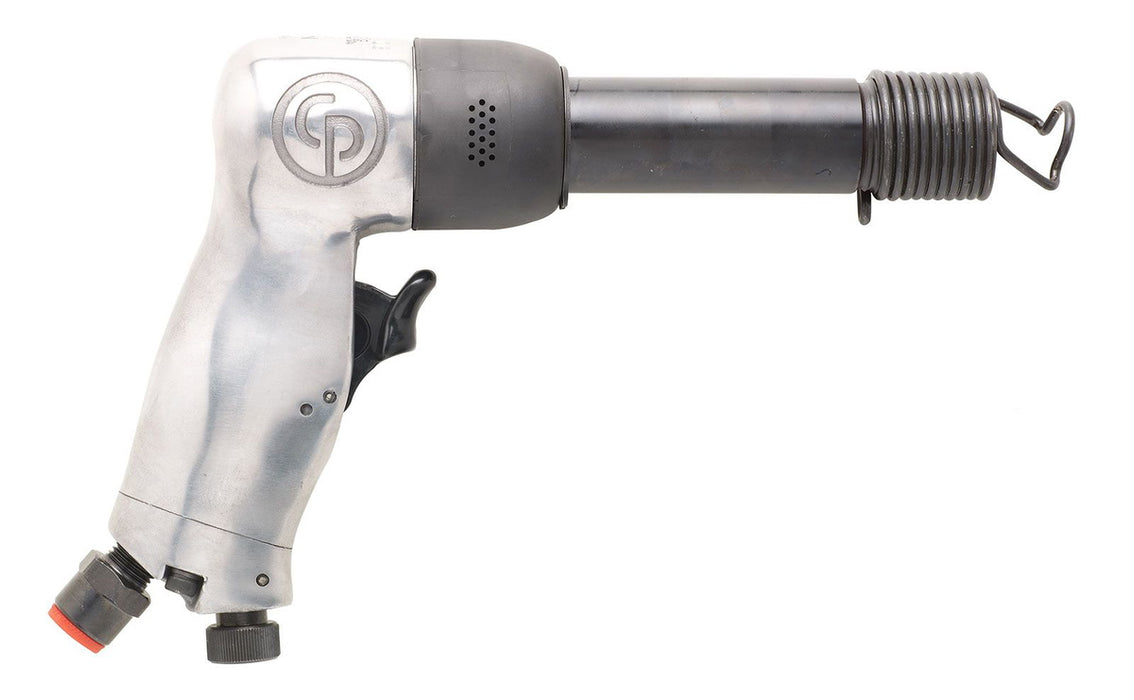

Chicago Pneumatic CP714, 0.401"(10.2mm) Air Hammer
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: T012735
The Chicago Pneumatic CP714 air hammer delivers the precision and raw striking power that professional mechanics and panel technicians demand from a compact, reliable tool. Engineered with a 14 mm bore diameter and an 80 mm stroke, the CP714 generates consistent impact force that makes short work of stubborn fasteners, panel reshaping, and sheet metal work. At just 1.51 kg, this chicago pneumatic air hammer strikes an ideal balance between power and operator comfort during extended use, significantly reducing hand-arm fatigue on the job. Measuring 190 mm in length, the cp714 air hammer has a slim, ergonomic profile that allows excellent access in tight engine bays and confined workshop spaces where larger pneumatic hammers simply cannot reach. The 0.401'' (10.2mm) round shank tooling interface accepts a wide range of standard cp air hammer accessories, including chisels, punches, and panel beating attachments, making it a genuinely versatile addition to any professional toolkit. With an air consumption of 4 l/s at load and a standard air inlet thread, this pneumatic chisel integrates seamlessly with most workshop compressor setups without demanding excessive line pressure. The T012735 reference ensures straightforward identification when ordering replacement parts through MachineRefurb.com. The chicago pneumatic cp714 is the go-to pneumatic hammer for automotive bodywork specialists, fabricators, and mechanical engineers who require dependable impact performance in a lightweight, manoeuvrable package every single working day.Product Feature: Heavy duty pistol grip hammer Speed regulator and positive action trigger for precise control High durability thanks to its aluminium housing About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Bore diameter: 14 mm
- Length (L): 190 mm
- Stroke: 80 mm
- Weight: 1.51 kg
- Air consumption at load: 4 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Blow per minute: 2000
- Chisel shank: Round
- Chisel shank diameter (in): 0.401
- Chisel shank diameter (mm): 10.2
- Energy: 4.7 J
- Main Material type: Aluminium
- Max rivet size (in): 1/4
- Max rivet size (mm): 6.4
- Max rivet size steel (in): 3/16
- Max rivet size steel (mm): 4.8
- Starting system: Trigger
- Sound Power: 102.5 dB(A)
- Sound Pressure: 91.5 dB(A)
- Uncertainty vibration-K: 5.8 m/s²
- Vibration: 16.2 m/s²
-
New Grade - 24 Months Warranty from purchase is available on this product.
