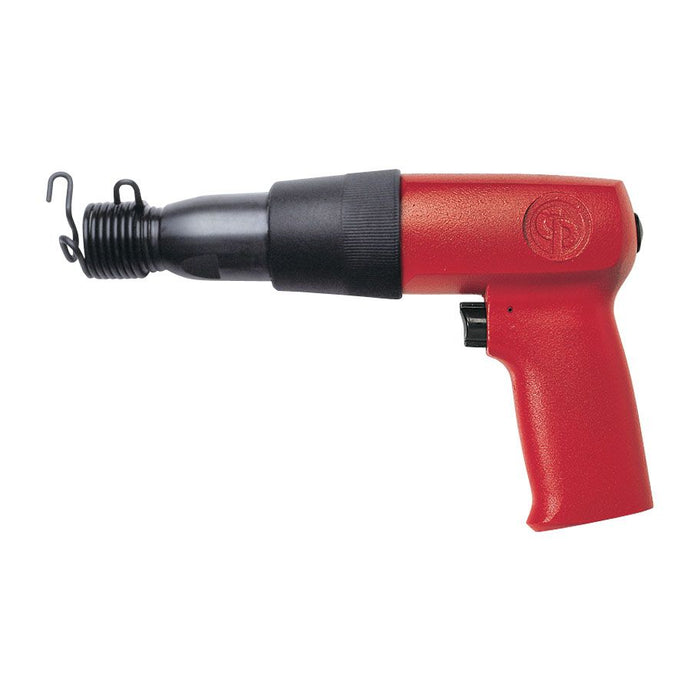

Chicago Pneumatic CP7110, 0.401"(10.2mm) Air Hammer
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941071101
Delivering exceptional power-to-weight performance, the Chicago Pneumatic CP7110 is the go-to choice for professionals who demand reliability and precision from their pneumatic tooling. This chicago pneumatic air hammer combines a compact 230 mm body length with a lightweight 1.7 kg design, reducing operator fatigue during extended use without sacrificing the hitting force needed to tackle demanding applications. The 19 mm bore diameter and 67 mm stroke work in harmony to produce consistent, controlled impact energy, making this cp air hammer a trusted companion across automotive, fabrication, and metalworking environments. Fitted with a 0.401'' (10.2mm) round shank retainer, the CP7110 accepts a wide range of standard air chisel accessories, giving technicians the versatility to switch between chiselling, cutting, and shaping tasks with ease. An air consumption rate of 6.9 l/s at load ensures the tool performs efficiently on most workshop compressor setups, while the robust internal components are engineered to withstand the rigours of daily professional use. The air inlet thread provides a secure, leak-free connection to standard pneumatic supply lines, supporting consistent performance throughout the working day. Whether tackling panel beating, bolt breaking, or gasket removal in a busy automotive workshop, or working through tough metal fabrication jobs on the shop floor, this pneumatic chisel hammer delivers the durability, balance, and impact consistency that experienced tradespeople rely on to get the job done right.Product Feature: Heavy-duty pistol grip hammer Internal muffler minimizes exhaust sound maximizing operator's comfort Great control thanks to the teasing trigger for slow start-up About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Bore diameter: 19 mm
- Length (L): 230 mm
- Stroke: 67 mm
- Weight: 1.7 kg
- Air consumption at load: 6.9 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Blow per minute: 3200
- Chisel shank: Round
- Chisel shank diameter (in): 0.401
- Chisel shank diameter (mm): 10.2
- Energy: 7.2 J
- Max rivet size (in): 1/4
- Max rivet size (mm): 6.4
- Max rivet size steel (in): 3/16
- Max rivet size steel (mm): 4.8
- Starting system: Trigger
- Sound Power: 109 dB(A)
- Uncertainty vibration-K: 2.9 m/s²
- Vibration: 6 m/s²
-
New Grade - 24 Months Warranty from purchase is available on this product.
