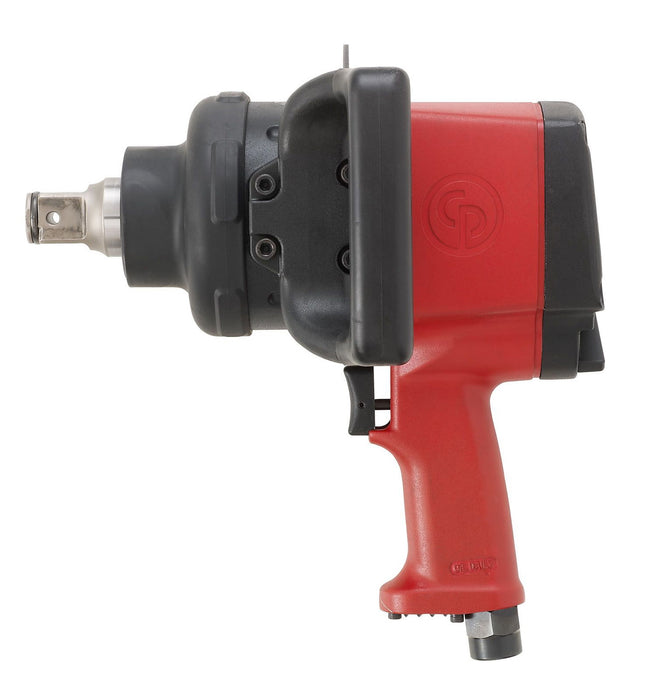

Chicago Pneumatic CP6910-P24, 1" Pistol Impact Wrench, 2100 Nm Torque, 5000 Rpm Free Speed – 6151590070
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151590070
Optimize bolting and unbolting with this 1" impact wrench. Featuring a durable pinless rocking dog clutch mechanism, aluminium body and clutch housing, this tool is designed to operate comfortably in the most demanding industrial environments, including both maintenance and production. The CP6910/CP6920 Series is defined by 2 models, pistol CP6110-P24 and straight D-handle CP6120-D24 for a delivered max reverse torque of up to 2,600 Nm / 1920 ft.lb.Product Feature: Reliable oil bath pinless rocking dog mechanism for hard and soft joint applications Pinless rocking dog mechanism gives a low vibration sensation even at very high torque Lightweight aluminium body and clutch housing with rubber protective cover for high durability Extremely comfortable rotating rubber side handle for operator comfort and transportation
-
- Max working torque fwd: 2100 Nm
- Max torque reverse: 2600 Nm
- Min working torque fwd: 500 Nm
- Torque limited: No
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 108 dB(A)
- Sound Pressure: 97 dB(A)
- Uncertainty vibration-K: 2.5 m/s²
- Vibration (m/s²): 8.9
- Vibration: 8.9 m/s²
- Free Speed: 5000 rpm
- Length (L): 290 mm
- Power weight ratio: 250 Nm/kg
- Side to Center: 55 mm
- Weight: 10.2 kg
- Blow per minute: 650
- Body: Aluminum
- Clutch housing: Aluminum
- Clutch lubrication type: Oil bath
- Handle type: Pistol
- Impact mecanism: Pinless rocking dog
- Main Material type: Aluminium
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Side handle: Yes
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
