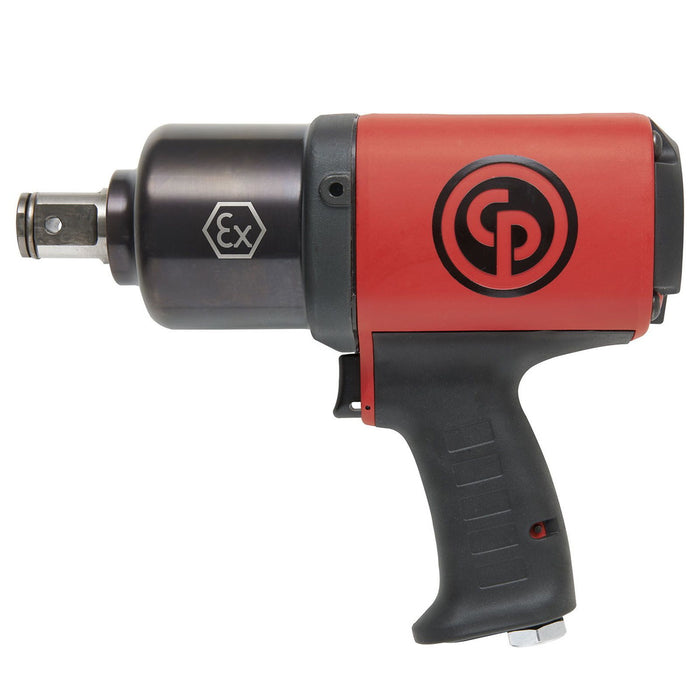

Chicago Pneumatic CP6778EX-P18D, 1" Pistol Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151590590
The Chicago Pneumatic CP6778EX-P18D delivers the raw power and certified safety that demanding industrial environments require, making it the go-to choice for professionals who cannot afford compromise. Engineered for use in potentially explosive atmospheres, this ATEX-rated 1-inch drive air impact wrench brings 1400 Nm of maximum forward working torque and an impressive 1750 Nm in reverse, giving technicians the muscle needed to break even the most stubborn fasteners free with confidence. Built around a pistol grip design, the CP6778EX-P18D offers excellent balance and control during extended use, reducing operator fatigue on heavy-duty assembly and maintenance tasks. A minimum working torque of 400 Nm forward provides a broad and practical torque range, ensuring versatility across a wide spectrum of bolting applications without the need for additional equipment. As a professional-grade chicago pneumatic impact wrench, it draws on decades of CP engineering heritage to deliver consistent, repeatable performance shift after shift. The tool accepts a standard air inlet connection and operates efficiently on a conventional compressed air supply, integrating seamlessly into existing workshop or site infrastructure. This cp impact wrench is ideally suited for petrochemical plants, oil refineries, offshore platforms, gas terminals, and any hazardous-zone facility where a certified air impact wrench is non-negotiable. From heavy flange work to large structural bolting, it handles the toughest jobs where safety certification and maximum torque output must go hand in hand.Product Feature: Reliable twin hammer clutch mechanism in oil bath for hard joint applications. ATEX certified IP6 dust-proof Square drive shaft with ring or dual version for a wide variety of applications Low noise and low vibration for operator comfort Comfortable handle with rubber grip & suspension bail included About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 1400 Nm
- Max torque reverse: 1750 Nm
- Min working torque fwd: 400 Nm
- Torque limited: No
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Pressure: 94 dB(A)
- Uncertainty vibration-K: 2.4 m/s²
- Free Speed: 5100 rpm
- Air consumption at free speed: 26 l/s
- Length (L): 255 mm
- Power weight ratio: 380 Nm/kg
- Side to Center: 45 mm
- Weight: 4.6 kg
- Blow per minute: 1050
- Body: Composite
- Clutch housing: Steel
- Clutch lubrication type: Oil bath
- Handle type: Pistol
- Impact mechanism: Twin hammer
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Starting system: Trigger
- Suspension option: Included
-
New Grade - 24 Months Warranty from purchase is available on this product.
