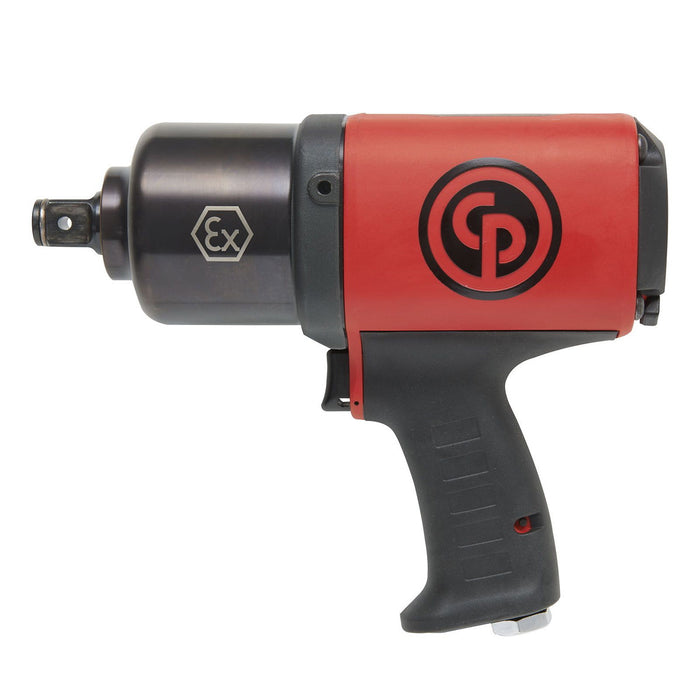

Chicago Pneumatic CP6768EX-P18D, 3/4" Pistol Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151590580
The Chicago Pneumatic CP6768EX-P18D delivers the raw power and explosion-proof reliability that demanding industrial environments require, making it one of the most capable heavy-duty air impact wrenches available for hazardous location work. Built to ATEX certification standards, this 3/4'' drive chicago pneumatic impact wrench is engineered specifically for use in potentially explosive atmospheres, including oil refineries, chemical plants, and gas processing facilities where standard pneumatic tools simply cannot be used safely. Generating an impressive 1,400 Nm of maximum working torque in forward and a formidable 1,750 Nm in reverse, the CP6768EX-P18D excels where stubborn fasteners and high-torque applications are routine. The minimum working torque of 400 Nm forward gives operators meaningful control across a broad torque range, while the pistol grip configuration ensures comfortable handling during extended use in confined or awkward spaces. As a premium cp impact wrench, it connects via a standard air inlet, integrating seamlessly into existing compressed air systems without additional adapters. The pistol-style body improves access in tight spaces compared to traditional D-handle designs, offering a practical advantage on structural steelwork, heavy plant maintenance, and pipeline assembly. Whether tackling flange bolting in petrochemical settings or heavy assembly lines in classified hazardous zones, the CP6768EX-P18D proves itself as one of the best air impact wrench options available for professionals who cannot compromise on safety or performance.Product Feature: Reliable twin hammer clutch mechanism in oil bath for hard joint applications. ATEX certified IP6 dust-proof Square drive shaft with ring or dual version for a wide variety of applications Low noise and low vibration for operator comfort Comfortable handle with rubber grip & suspension bail included About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 1400 Nm
- Max torque reverse: 1750 Nm
- Min working torque fwd: 400 Nm
- Torque limited: No
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Pressure: 94 dB(A)
- Uncertainty vibration-K: 2.4 m/s²
- Free Speed: 5100 rpm
- Air consumption at free speed: 26 l/s
- Length (L): 250 mm
- Power weight ratio: 390 Nm/kg
- Side to Center: 45 mm
- Weight: 4.4 kg
- Blow per minute: 1050
- Body: Composite
- Clutch housing: Steel
- Clutch lubrication type: Oil bath
- Handle type: Pistol
- Impact mechanism: Twin hammer
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Dual
- Starting system: Trigger
- Suspension option: Included
-
New Grade - 24 Months Warranty from purchase is available on this product.
