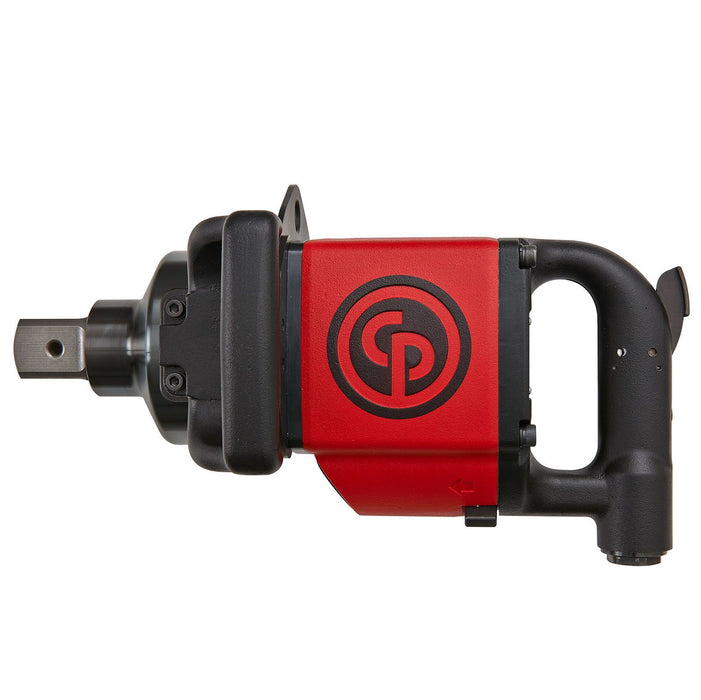

Chicago Pneumatic CP6135-D80, 1-1/2" D-Handle Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151590380
The Chicago Pneumatic CP6135-D80 delivers the kind of raw, dependable power that heavy-duty professionals demand on the toughest jobs. This 1-1/2'' D-Handle air impact wrench produces a formidable 5500 Nm of maximum working torque in forward and an exceptional 8000 Nm in reverse, making it one of the most capable chicago pneumatic impact wrench models available for large-scale fastening and removal tasks. Designed with a robust D-handle configuration, the CP6135-D80 offers precise control and reduced operator fatigue during extended use, a critical advantage when working with high-torque applications over long shifts. As a premium cp impact wrench, the CP6135-D80 features a minimum working torque of just 1 Nm in forward, giving operators a surprisingly versatile range that spans delicate assembly work right through to the most demanding disassembly operations. The air impact wrench design ensures consistent pneumatic performance, relying on a clean, reliable air supply to deliver repeatable results across a wide variety of industrial environments. Built to the exacting standards that have made Chicago Pneumatic a trusted name in professional tooling, this model is perfectly suited for heavy vehicle maintenance, mining equipment servicing, large structural assembly, and industrial plant operations where standard wrenches simply cannot meet the torque requirements. When the job calls for exceptional reverse torque and long-lasting durability, the CP6135-D80 stands as the go-to solution.Product Feature: Reliable pinless rocking dog clutch mechanism. Lightweight, low vibration for operational comfort even at very high torque. Durable aluminium body and robust steel clutch housing for extreme durability. Teasing trigger allows a high progressive max torque for smooth operation . About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 5500 Nm
- Max torque reverse: 8000 Nm
- Min working torque fwd: 1 Nm
- Torque limited: No
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.63 in
- Min hose diam (5 m hose length): 19 mm
- Sound Pressure: 98 dB(A)
- Uncertainty vibration-K: 2.2 m/s²
- Free Speed: 2800 rpm
- Length (L): 408 mm
- Power weight ratio: 500 Nm/kg
- Side to Center: 67.5 mm
- Weight: 16 kg
- Blow per minute: 750
- Body: Aluminium
- Clutch housing: Steel
- Clutch lubrication type: Grease
- Handle type: D-handle
- Impact mechanism: Pinless rocking dog
- Output drive size (in): 1-1/2
- Output drive type: Sq
- Output retainer type: Hole
- Side handle: Yes
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
