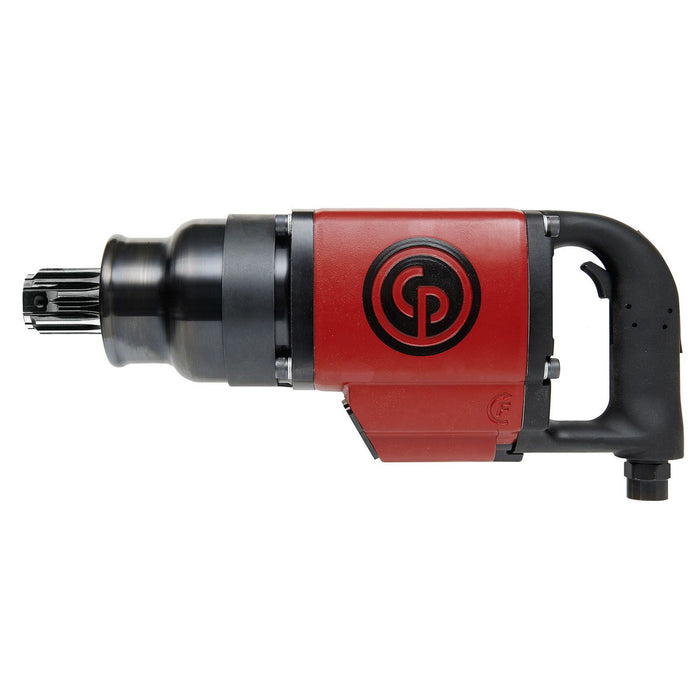

Chicago Pneumatic CP6120-D35L, 5-Spline D-Handle Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151590130
Delivering exceptional power where it matters most, the Chicago Pneumatic CP6120-D35L 5 Spline D-Handle Air Impact Wrench sets a formidable benchmark for heavy-duty fastening performance. Built for demanding industrial environments, this CP impact wrench generates an impressive maximum working torque of 2710 Nm in forward and an outstanding 4880 Nm in reverse, making it one of the most capable air impact wrenches available for loosening seized or heavily corroded fasteners. A minimum working torque of 815 Nm in forward ensures precise control across a broad range of applications, giving operators reliable performance at every stage of the job. The D-handle configuration offers a secure, ergonomic grip that reduces operator fatigue during extended use, while the 5 spline drive interface provides a robust connection to sockets and accessories built for extreme torque transfer. Engineered without torque limiting, the CP6120-D35L delivers its full power output consistently, ensuring maximum productivity on the toughest jobs. The standard air inlet keeps integration with existing compressed air systems straightforward, requiring no special fittings or adaptations. This chicago pneumatic impact wrench is ideally suited to heavy vehicle maintenance workshops, mining operations, oil and gas facilities, and large-scale construction sites where professionals demand a best air impact wrench solution capable of handling large fasteners on trucks, plant machinery, and structural steelwork with confidence and reliability every time.Product Feature: Reliable 2-jaw clutch mechanism can be set for hard and soft joint applications 2-jaw clutch minimizes vibration sensation Robust steel clutch housing guarantees durability High progressive max torque for smooth operation Durable lightweight aluminium body offers operator comfort, About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 2710 Nm
- Max torque reverse: 4880 Nm
- Min working torque fwd: 815 Nm
- Torque limited: No
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (5 m hose length): 19 mm
- Sound Pressure: 97 dB(A)
- Uncertainty vibration-K: 11.8 m/s²
- Free Speed: 3500 rpm
- Air consumption at free speed: 51 l/s
- Length (L): 420 mm
- Side to Center: 54 mm
- Weight: 15.6 kg
- Blow per minute: 960
- Body: Aluminium
- Clutch housing: Steel
- Clutch lubrication type: Grease
- Handle type: D-handle
- Impact mechanism: 2-jaws
- Output drive size (in): #5 Spline
- Output drive type: 5 Spline
- Output retainer type: Pin retainer
- Side handle: Yes
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
