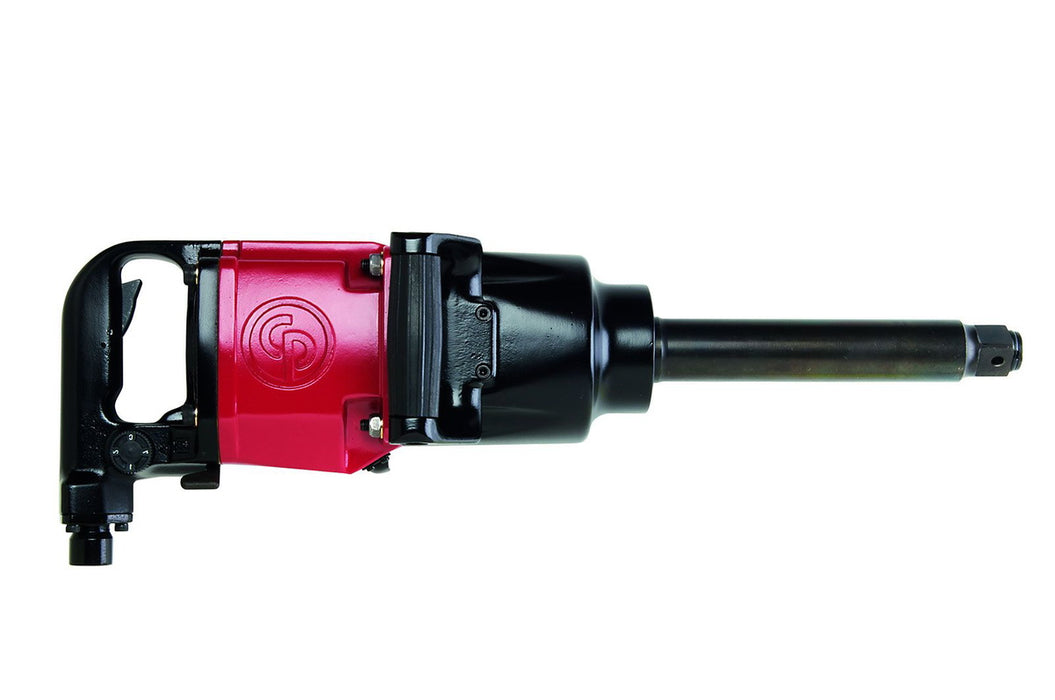

Chicago Pneumatic CP5000, 1" Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: T024585
Delivering exceptional torque output and relentless durability on the heaviest fastening tasks, the Chicago Pneumatic CP5000 1'' Air Impact Wrench is the professional's choice for demanding industrial and heavy-duty applications. Engineered to handle the most challenging removal and installation jobs, this CP impact wrench produces an outstanding maximum working torque of 2800 Nm forward and an impressive 3390 Nm in reverse, ensuring stubborn fasteners are no match for its raw power. With a free speed of 3700 RPM, the CP5000 delivers rapid, efficient performance that keeps productivity high across extended working shifts. The robust construction of this Chicago Pneumatic impact wrench reflects the brand's long-standing reputation for engineering tools that withstand punishing workshop and field environments. Its 1'' square drive makes it ideally suited for large-scale assemblies, and the minimum working torque of 240 Nm forward provides a practical range of control across varied fastener sizes. Operators benefit from a tool designed to reduce fatigue and maintain consistent output session after session, making it a trusted addition to any serious air impact wrench arsenal. The CP5000 is perfectly suited for heavy vehicle maintenance, mining equipment servicing, agricultural machinery repair, and large structural assembly work where maximum torque, speed, and reliability are non-negotiable requirements.Product Feature: Outstanding operator productivity for high volume tire work on trucks, buses, and heavy equipment. Metal motor housing with rocking dog hammer mechanism for high durability Convenient reverse valve with 4-position power settings for ease of use About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 2800 Nm
- Max torque reverse: 3390 Nm
- Min working torque fwd: 240 Nm
- Torque limited: No
- Air consumption at load: 25 l/s
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 114 dB(A)
- Sound Pressure: 103 dB(A)
- Uncertainty vibration-K: 2.6 m/s²
- Vibration (m/s²): 8.5
- Vibration: 8.5 m/s²
- Free Speed: 3700 rpm
- Length (L): 572 mm
- Power weight ratio: 200 Nm/kg
- Weight: 16.2 kg
- Blow per minute: 540
- Body: Aluminium
- Clutch housing: Steel
- Clutch lubrication type: Grease
- Handle type: D-handle
- Impact mechanism: Pinless rocking dog
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Side handle: Yes
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
