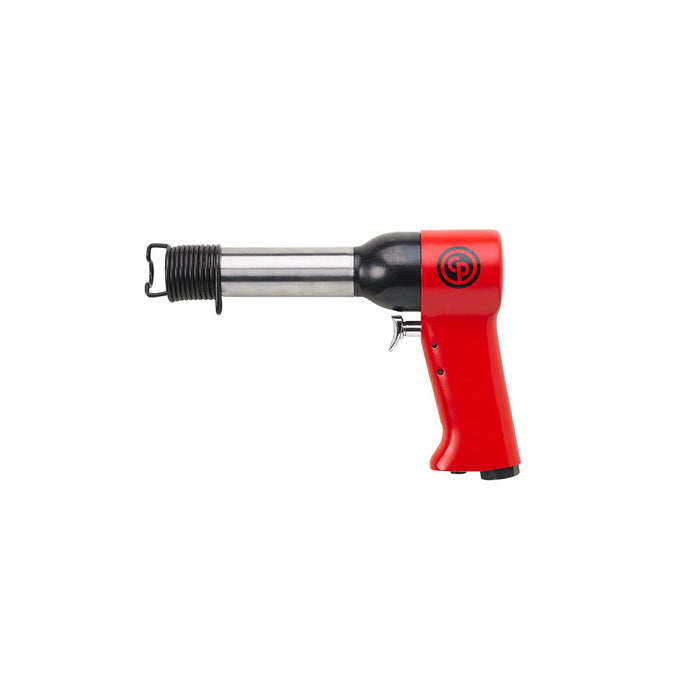

Chicago Pneumatic CP4284, Type 4X Air Rivet Hammer
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151740620
The Chicago Pneumatic CP4284 Type 4X Rivet Hammer delivers the precision and power that professional metalworkers and fabricators demand from a dedicated pneumatic rivet hammer, making it a reliable choice for high-volume riveting and chipping applications across automotive, aerospace, and structural steel environments. Engineered for durability and consistent performance, this chicago pneumatic air hammer operates with an air consumption of 1.9 l/s at free speed, rising to 5.2 Nl/s under working conditions, ensuring efficient use of compressed air without sacrificing impact force. The 1/4-inch air inlet thread size allows straightforward integration with standard workshop air supply lines, keeping setup time to a minimum and maximising productivity on the shop floor. As a cp air hammer designed to tackle demanding riveting tasks, the CP4284 benefits from Chicago Pneumatic's proven internal engineering, delivering a smooth yet forceful action that reduces operator fatigue during extended use. The ergonomic form factor suits both right- and left-handed technicians, and the Type 4X designation reflects its classification as a purpose-built rivet tool rather than a general-purpose pneumatic chisel, though its robust construction makes it equally capable when used as an air chisel hammer for light chipping and scaling work. Whether used on a production line or in a fabrication workshop, this tool earns its place as a dependable partner wherever consistent rivet setting and metal-working precision are non-negotiable.Product Feature: A simple range for multiple aerospace application From 1X up to 9X rivet hammer type to cover a majority of aluminium and steel rivet size 7 models to cover all frequently used rivets in metal structure repair for Aerospace Very good durability for aerospace MRO. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at free speed (Normo): 5.2 1/sNl
- Air consumption at free speed: 1.9 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 9.5 mm
- Sound Power: 108 dB(A)
- Sound Pressure: 97 dB(A)
- Uncertainty vibration-K: 2.7 m/s²
- Vibration: 12.9 m/s²
- Bore diameter: 12.7 mm
- Height (H): 142.8 mm
- Length (L): 211 mm
- Width (W): 50.8 mm
- Stroke: 78 mm
- Weight: 1.39 kg
- Blow per minute: 1740
- Chisel shank diameter (in): 0.401
- Chisel shank diameter (mm): 10.2
- Energy: 4.6 J
- Max rivet size aluminium (in): 1/4
- Max rivet size aluminium (mm): 6.4
- Max rivet size steel (in): 3/16
- Max rivet size steel (mm): 4.8
- Rivet hammer type: 4X
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
