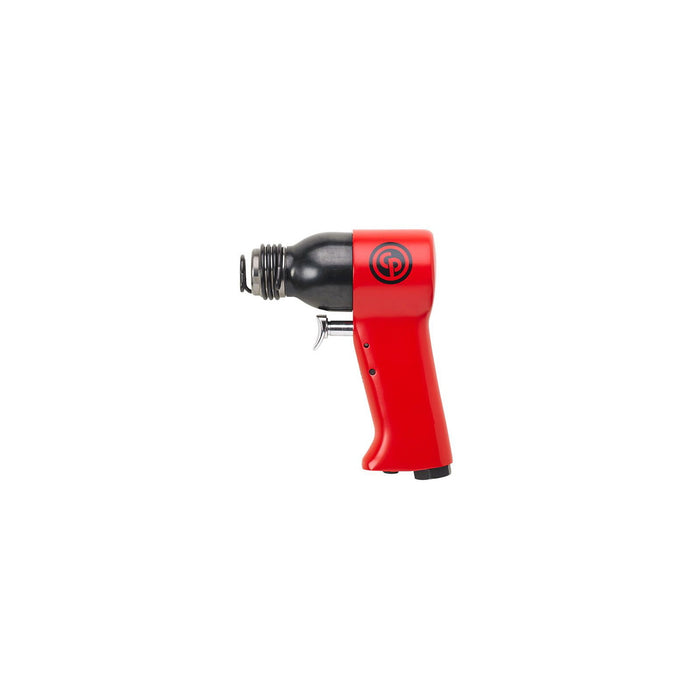

Chicago Pneumatic CP4281, Type 1X Air Rivet Hammer
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151740590
The Chicago Pneumatic CP4281 Type 1X Rivet Hammer delivers the precision and power that automotive technicians, fabricators, and metalworkers demand from a professional-grade pneumatic hammer. Engineered for durability and consistent performance, this cp air hammer is purpose-built to handle riveting, chiselling, and surface preparation tasks with ease, making it a reliable addition to any serious workshop. Connecting via a standard 1/4-inch air inlet thread, the CP4281 integrates seamlessly with existing compressed air systems without the need for additional adapters. It operates at a free-speed air consumption of 1.9 l/s, with a Normo-rated consumption of 5.2 l/s, ensuring efficient airflow management that keeps productivity high while minimising unnecessary compressor strain. These balanced consumption figures make this air chisel hammer particularly well-suited for extended work sessions where consistent output matters. The tool's compact and ergonomic form factor reduces operator fatigue during repetitive applications, while its robust internal mechanism provides the impact frequency and force expected from a trusted Chicago Pneumatic air hammer. Built to meet the demands of professionals who rely on their equipment daily, the CP4281 maintains the brand's long-standing reputation for quality across its pneumatic tool range. Whether tackling panel removal in automotive bodywork, breaking welds, or driving chisels on industrial fabrication lines, the Chicago Pneumatic CP4281 Type 1X Rivet Hammer is a dependable pneumatic chisel solution for tradespeople who refuse to compromise on performance.Product Feature: A simple range for multiple aerospace application From 1X up to 9X rivet hammer type to cover a majority of aluminium and steel rivet size 7 models to cover all frequently used rivets in metal structure repair for Aerospace Very good durability for aerospace MRO. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at free speed (Normo): 5.2 1/sNl
- Air consumption at free speed: 1.9 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 9.5 mm
- Sound Power: 107 dB(A)
- Sound Pressure: 96 dB(A)
- Uncertainty vibration-K: 2.5 m/s²
- Vibration: 11.4 m/s²
- Bore diameter: 14.3 mm
- Height (H): 142.8 mm
- Length (L): 115 mm
- Width (W): 50.8 mm
- Stroke: 35 mm
- Weight: 1.06 kg
- Blow per minute: 2850
- Chisel shank diameter (in): 0.401
- Chisel shank diameter (mm): 10.2
- Energy: 2.6 J
- Main Material type: Aluminium, Steel
- Max rivet size aluminium (in): 1/8
- Max rivet size aluminium (mm): 3.2
- Rivet hammer type: 1X
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
