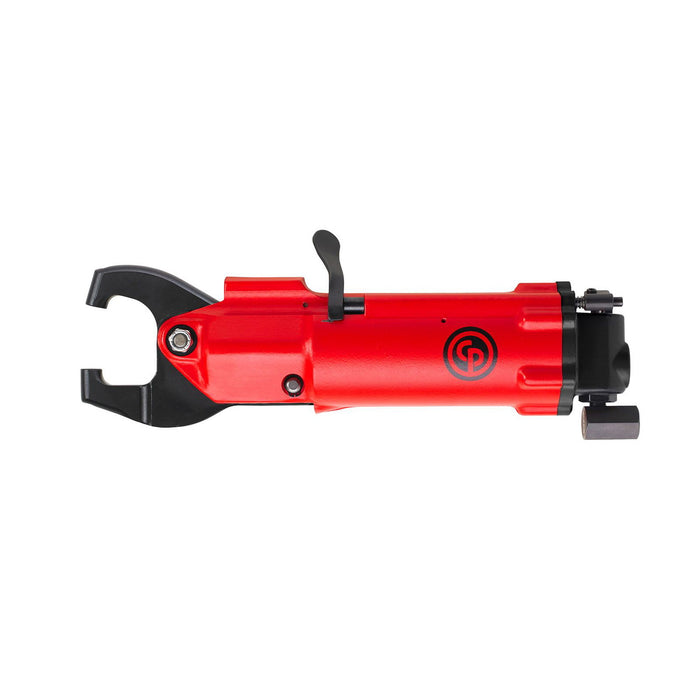

Chicago Pneumatic CP4220AS, Pneumatic Rivet Squeezer
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151710210
The Chicago Pneumatic CP4220AS Alligator Jaw Rivet Squeezer delivers the controlled, consistent pressing force that aircraft maintenance technicians and sheet metal fabricators depend on for flawless rivet setting every time. Designed for precision assembly work where accuracy cannot be compromised, this pneumatic rivet squeezer combines a compact, ergonomic profile with the robust engineering Chicago Pneumatic is renowned for across the aerospace and industrial sectors. Weighing just 2.2 kg and measuring 284 mm in length with a height of 92 mm, the CP4220AS is engineered to access tight spaces without sacrificing operator control or comfort during extended production runs. The short alligator jaw configuration provides excellent visibility and positioning around the workpiece, ensuring every rivet is driven to the correct set with minimal effort. A maximum moving plunger travel of 15.9 mm accommodates a practical range of rivet sizes, making this tool a versatile asset across varied assembly applications. Built to integrate seamlessly into professional pneumatic tool setups, this Chicago Pneumatic alligator rivet squeezer suits avionics workshops, aircraft skin repair, and light structural fabrication where clean, consistent rivet formation is essential. Its solid construction supports the demands of high-cycle production environments while remaining manageable enough for detailed, close-tolerance work. Whether tackling scheduled maintenance or new-build assembly, the CP4220AS rivet squeezer from MachineRefurb.com gives skilled tradespeople a reliable, performance-focused tool they can trust shift after shift.Product Feature: Extremely good ergonomics - silent and vibrationless The different jaws make it possible to use for any rivets within 76 mm from an edge 6 models to cover the most frequently used rivets in Metal structure repair for Aerospace Very good durability for aerospace MRO. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Height (H): 92 mm
- Length (L): 284 mm
- Moving plunger max. travel: 15.9 mm
- Weight: 2.2 kg
- Jaw type: Aligator short
- Main Material type: Aluminium
- Max compression force (90psi/6.2bar): 26.7 kN
- Max rivet size aluminium (in): 3/16
- Max rivet size aluminium (mm): 4.8
- Max rivet size steel (in): 5/32
- Max rivet size steel (mm): 4
- Starting system: Safety lever
- Sound Power: 83 dB(A)
- Sound Pressure: 72 dB(A)
- Uncertainty vibration-K: 1.6 m/s²
- Vibration (m/s²): <2.5 m/s**2
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 9.5 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
