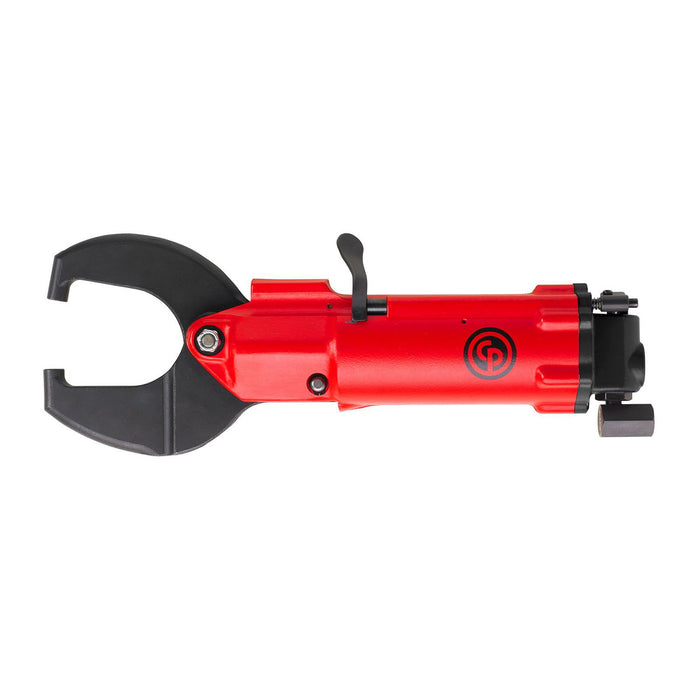

Chicago Pneumatic CP4220AL, Pneumatic Rivet Squeezer
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151710230
The Chicago Pneumatic CP4220AL delivers the precision and clamping power that aerospace, automotive, and sheet metal professionals demand from a dedicated alligator jaw rivet squeezer. Engineered for consistent, repeatable riveting performance, this pneumatic squeezer combines a robust yet manageable 2.5 kg frame with a compact 343 mm length and 134 mm height, making it well suited to both open-panel work and tighter assembly environments where control is paramount. At the heart of the CP4220AL is its distinctive alligator long jaw configuration, purpose-built to reach rivets that conventional C-yoke squeezers simply cannot access. The moving plunger delivers a maximum travel of 19.5 mm, providing ample stroke to fully set a wide range of solid and semi-tubular rivets cleanly and without material distortion. The balanced weight distribution reduces operator fatigue during extended production runs, while the tool's durable pneumatic mechanism ensures reliable cycling shift after shift. Backed by Chicago Pneumatic's reputation for industrial-grade build quality, the CP4220AL rivet squeezer is a dependable addition to any riveting toolkit where alligator jaw reach, consistent squeeze force, and low maintenance are non-negotiable. Whether forming structural rivets on aircraft skins, fabricating metal assemblies on the production line, or tackling precision sheet metal work in a specialist workshop, this squeezer delivers the controlled, professional results that experienced riveters rely on every day.Product Feature: Extremely good ergonomics - silent and vibrationless The different jaws make it possible to use for any rivets within 76 mm from an edge 6 models to cover the most frequently used rivets in Metal structure repair for Aerospace Very good durability for aerospace MRO. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Height (H): 134 mm
- Length (L): 343 mm
- Moving plunger max. travel: 19.5 mm
- Weight: 2.5 kg
- Jaw type: Aligator long
- Main Material type: Aluminium
- Max compression force (90psi/6.2bar): 18.2 kN
- Max rivet size aluminium (in): 1/8
- Max rivet size aluminium (mm): 3.2
- Max rivet size steel (in): 3/32
- Max rivet size steel (mm): 2.4
- Starting system: Safety lever
- Sound Power: 83 dB(A)
- Sound Pressure: 72 dB(A)
- Uncertainty vibration-K: 1.6 m/s²
- Vibration (m/s²): <2.5 m/s**2
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 9.5 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
