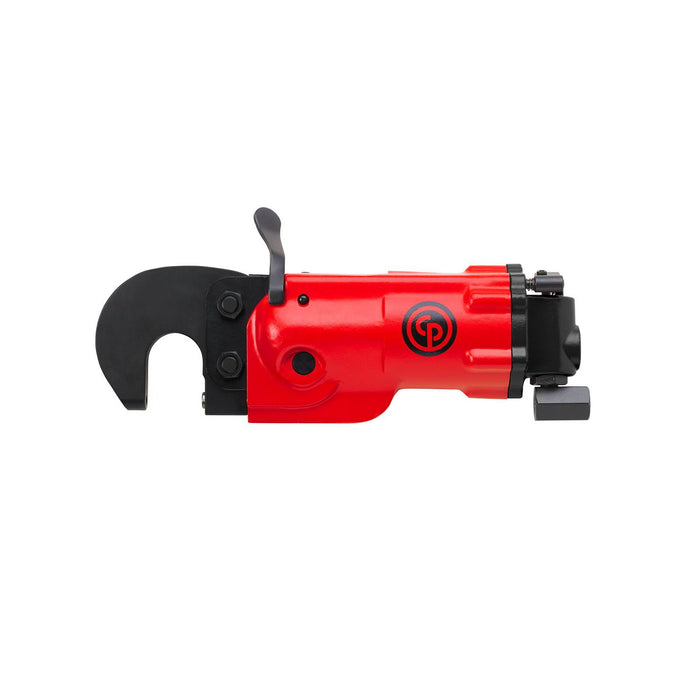

Chicago Pneumatic CP4210CS, Pneumatic Rivet Squeezer
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151710180
The Chicago Pneumatic CP4210CS C Jaw Rivet Squeezer delivers professional-grade riveting performance in a compact, well-balanced package designed for demanding aerospace, automotive, and sheet metal fabrication environments. Built around a short C-jaw configuration, this air-powered squeezer generates consistent, repeatable squeeze forces that produce clean, uniform rivets without the distortion or surface damage associated with hammer riveting techniques. Weighing just 2.04 kg and measuring 262 mm in length with an 84 mm height profile, the CP4210CS offers an ergonomic form factor that reduces operator fatigue during extended production runs. The tool's 14.3 mm maximum plunger travel accommodates a practical range of rivet sizes and materials, making it a versatile addition to any riveting station. The short C-jaw geometry allows access to tighter workpiece flanges and panel assemblies where standard jaw lengths would prove impractical, giving technicians greater reach flexibility without sacrificing structural integrity. Precision-engineered from high-grade materials, this Chicago Pneumatic C jaw rivet squeezer maintains tight dimensional tolerances across thousands of cycles, supporting quality-critical assembly standards in regulated industries. The tool connects seamlessly to standard compressed air supplies, integrating into existing production line pneumatic systems with minimal setup time. The CP4210CS is ideally suited for aircraft skin riveting, automotive body panel assembly, and precision sheet metal fabrication where consistent squeeze quality and reliable cycle-to-cycle repeatability are non-negotiable production requirements.Product Feature: Extremely good ergonomics - silent and vibrationless The different jaws make it possible to use for any rivets within 76 mm from an edge 6 models to cover the most frequently used rivets in Metal structure repair for Aerospace Very good durability for aerospace MRO. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Height (H): 84 mm
- Length (L): 262 mm
- Moving plunger max. travel: 14.3 mm
- Weight: 2.04 kg
- Jaw type: C-short
- Main Material type: Aluminium
- Max compression force (90psi/6.2bar): 13.3 kN
- Max rivet size aluminium (in): 1/8
- Max rivet size aluminium (mm): 3.2
- Max rivet size steel (in): 3/32
- Max rivet size steel (mm): 2.4
- Starting system: Safety lever
- Sound Power: 87 dB(A)
- Sound Pressure: 76 dB(A)
- Uncertainty vibration-K: 2.3 m/s²
- Vibration (m/s²): <2.5 m/s**2
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 9.5 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
