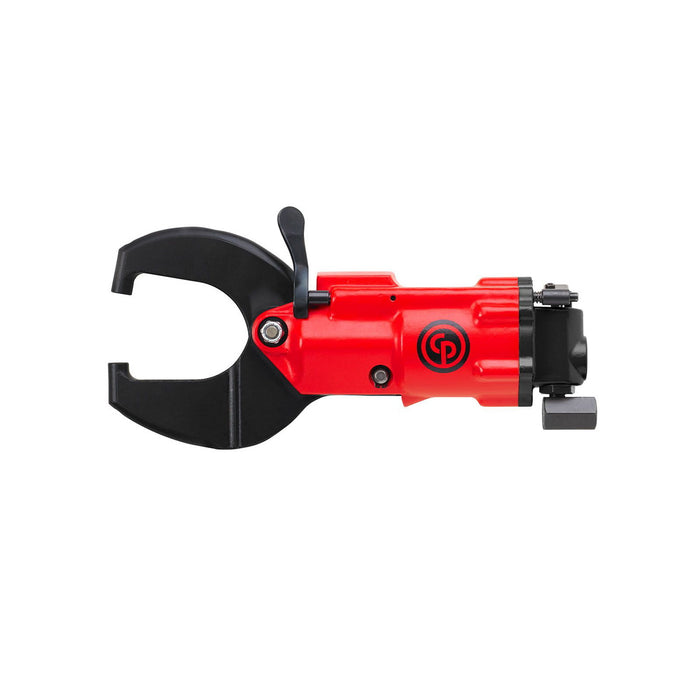

Chicago Pneumatic CP4210AL, Pneumatic Rivet Squeezer
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151710220
The Chicago Pneumatic CP4210AL Alligator Jaw Rivet Squeezer delivers professional-grade riveting performance with the kind of precision and control that demanding aerospace, automotive, and sheet metal fabrication tasks require. Designed for operators who need consistent, repeatable squeeze force in tight or awkward work zones, this pneumatic rivet squeezer combines a compact yet capable form factor with genuine industrial durability. Weighing just 2.1 kg and measuring 273 mm in length with a height of 134 mm, the CP4210AL is engineered to be both manageable during extended use and robust enough to handle the rigours of production-line environments. The alligator long jaw configuration provides excellent reach and accessibility, allowing technicians to work on rivets in locations that standard jaw types simply cannot access. A maximum moving plunger travel of 19.1 mm ensures compatibility with a broad range of rivet sizes and materials, giving operators the flexibility to tackle varied fastening applications without changing tools. The long alligator jaw design is particularly valued in aircraft maintenance and structural assembly work, where accessing recessed or edge-positioned rivets is a daily challenge. Sourced from Chicago Pneumatic's trusted range of pneumatic assembly tools, this rivet squeezer reflects the brand's commitment to ergonomic design and consistent output quality. Whether used on production floors, in MRO facilities, or specialist fabrication workshops, the Chicago Pneumatic CP4210AL is a reliable, precision-focused solution for professionals who cannot afford inconsistency in their riveting results.Product Feature: Extremely good ergonomics - silent and vibrationless The different jaws make it possible to use for any rivets within 76 mm from an edge 6 models to cover the most frequently used rivets in Metal structure repair for Aerospace Very good durability for aerospace MRO. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Height (H): 134 mm
- Length (L): 273 mm
- Moving plunger max. travel: 19.1 mm
- Weight: 2.1 kg
- Jaw type: Aligator long
- Main Material type: Aluminium
- Max compression force (90psi/6.2bar): 8 kN
- Max rivet size aluminium (in): 3/32
- Max rivet size aluminium (mm): 2.4
- Max rivet size steel (in): 1/16
- Max rivet size steel (mm): 1.6
- Starting system: Safety lever
- Sound Power: 87 dB(A)
- Sound Pressure: 76 dB(A)
- Uncertainty vibration-K: 2.7 m/s²
- Vibration (m/s²): <2.5 m/s**2
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 9.5 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
