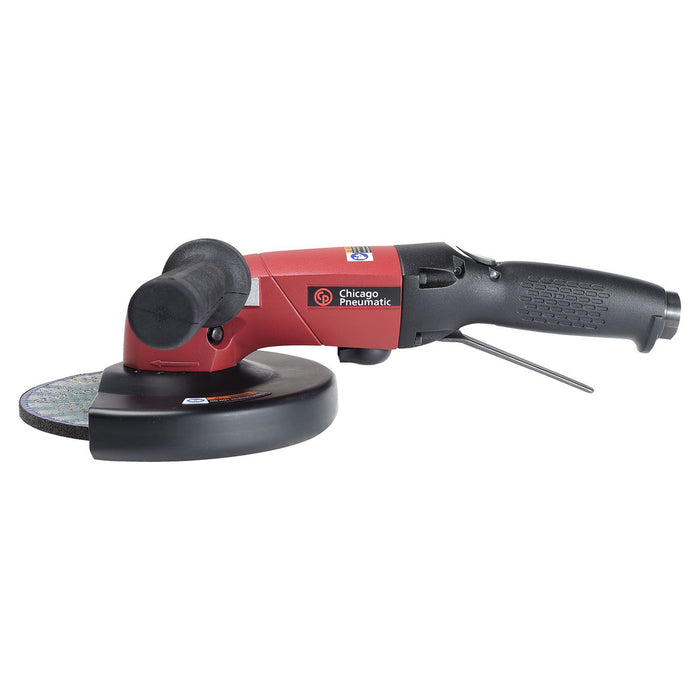

Chicago Pneumatic CP3850-85AH7VE, 7" Air Angle Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151704930
The Chicago Pneumatic CP3850-85AH7VE delivers the raw power and precision that demanding metalworking professionals rely on, combining a robust 2100 W output with a 7-inch (180 mm) grinding capacity to tackle heavy-duty material removal and surface preparation with exceptional efficiency. Engineered as a high-performance chicago pneumatic air grinder, this model operates at a free speed of 8500 rpm, generating the rotational force needed to cut through tough welds, scale, and heavy stock with minimal operator fatigue. One of the standout features of this 7 inch pneumatic angle grinder is its integrated auto balancer, which actively compensates for disc imbalance during operation, resulting in dramatically reduced vibration and smoother surface finishes. Air consumption at free speed sits at 17 l/s, reflecting a well-optimised design that balances power delivery with compressed air efficiency across sustained working cycles. The guard system offers up to 150 degrees of rotation, giving operators genuine flexibility when adjusting for different workpiece orientations and confined access situations. Built to the exacting standards that have made chicago pneumatic grinder solutions a benchmark in industrial environments, the CP3850-85AH7VE is ideally suited for shipbuilding yards, structural steel fabrication, heavy equipment maintenance, and foundry operations where consistent, high-torque grinding performance across extended production shifts is an absolute requirement.Product Feature: Highly durable spiral bevel gear reduces vibration and torque transmission stress, resulting in a 2,000 h maintenance interval Double streamlined safety lever facilitates single-handed engagement and helps reduce risk of accidental start up Ergonomic, multi-position (360°), anti-vibration side handle to keep the operator's wrist straight and comfortable 360° adjustable air exhaust with integrated muffler for a noise level limited to 84 dB(A) Debris magnet to collect debris and extend super durable spiral bevel gear About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Free Speed: 8500 rpm
- Air consumption at free speed: 17 l/s
- Auto balancer: Yes
- Guard max rotation: 150 °
- Guard positions: 7
- Main Material type: Aluminium
- Rotative guard type: Screws
- Spindle lock: Yes
- Starting system: Safety lever
- Swiveling guard: Key
- Wheel/Disc diameter (in): 7
- Wheel/Disc diameter (mm): 180
- Sound Power: 98 dB(A)
- Sound Pressure: 87 dB(A)
- Uncertainty vibration-K: 1 m/s²
- Vibration: 5.4 m/s²
- Air consumption at load: 36 l/s
- Air inlet thread size (in): 1/2
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.63 in
- Min hose diam (5 m hose length): 16 mm
- Length (L): 340 mm
- Side to Center: 29 mm
- Weight: 2.7 kg
- Max power: 2100 W
-
New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions
