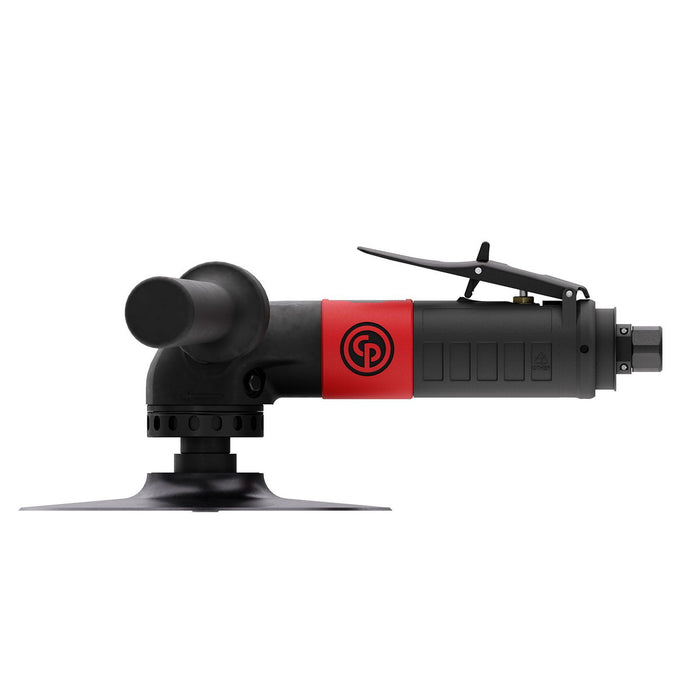

Chicago Pneumatic CP3650-085AA, 180mm Orbital Air Sander
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151620450
Delivering 1800W of raw pneumatic power, the Chicago Pneumatic CP3650-085AA gives surface finishing professionals a serious performance advantage on demanding industrial applications. Designed specifically for 180mm (7-inch) wheels, this heavyweight air sander strikes an ideal balance between sheer material removal capability and operator control, making it a go-to choice for bodyshops, fabrication facilities, and heavy industrial environments where consistency and output matter. At just 1.8 kg, the CP3650-085AA proves that industrial-grade performance doesn't have to come at the cost of operator fatigue. Its compact dimensions - 247.5mm in length, 90mm in height, and 68mm in width - allow for confident handling across large panel surfaces and contoured workpieces alike. The 34mm side-to-centre measurement supports precise edge work and flush finishing in tighter zones where accuracy is critical. As a high-output pneumatic orbital sander, it integrates seamlessly into professional compressed air systems, delivering the smooth, swirl-free results that da sander air tools are valued for. The orbital action makes it equally effective as an air da sander for paint preparation, primer sanding, and surface conditioning on steel, aluminium, and composite substrates. Whether used as a daily production air orbital sander in an automotive refinishing bay or deployed across shipbuilding and heavy fabrication workflows, this Chicago Pneumatic jitterbug sander variant brings industrial endurance and ergonomic confidence to every pass.Product Feature: +25% improved robustness with an exceptional bevel gear life of 2500 hours Governed motor for better productivity and reduced vibration A more durable design with a protective rubber on angle head housing and a steel swivelling air inlet Spindle lock button for fast and easy abrasive disc change Improved ergonomics with an orientable vibration damping side handle and a swivelling air inlet About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Height (H): 90 mm
- Length (L): 247.5 mm
- Width (W): 68 mm
- Side to Center: 34 mm
- Weight: 1.8 kg
- Max power: 1800 W
- Air consumption at load (Normo): 29.8 1/sNl
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Free Speed: 8500 rpm
- Air consumption at free speed (Normo): 17.6 1/sNl
- Overspeed shut-off: No
- Auto balancer: No
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Output Spindle Thread: M14
- Rotative inlet: Yes
- Spindle lock: Yes
- Starting system: Safety lever
- Wheel/Disc diameter (in): 7
- Wheel/Disc diameter (mm): 180
- Sound Power: 104 dB(A)
- Sound Pressure: 93 dB(A)
- Uncertainty vibration-K: 1.5 m/s²
- General: Energy type
- Pneumatic: Family
- Sanders: Subfamily
- Angle Sanders: CP3650-085AA
-
New Grade - 24 Months Warranty from purchase is available on this product.
