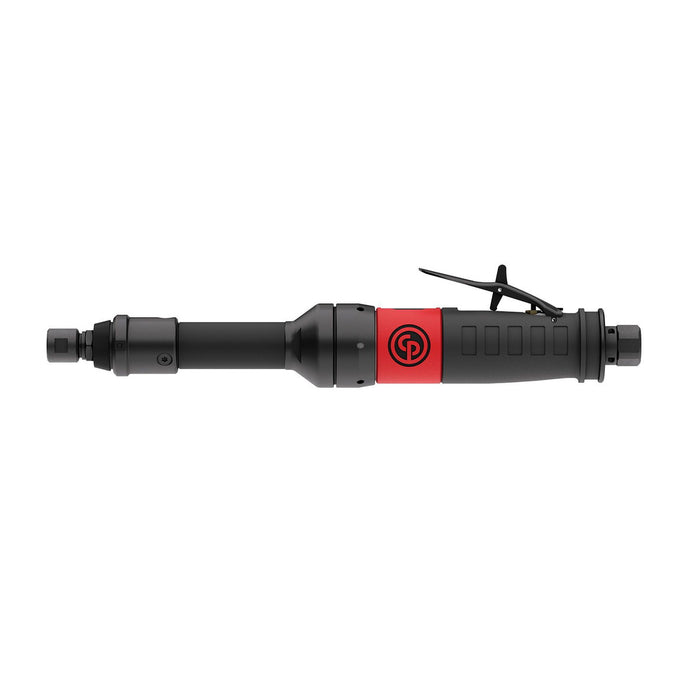

Chicago Pneumatic CP3550-180ES, 1/4"(6mm) Straight Air Die Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151602360
The Chicago Pneumatic CP3550-180ES delivers exceptional power-to-weight performance for professionals who demand precision and endurance in demanding grinding applications. Engineered as a high-output 1/4-inch air die grinder, this tool combines a commanding 1050 W maximum power output with a free speed of 18000 RPM, giving operators the speed and torque needed to tackle aggressive material removal, deburring, and surface finishing with complete confidence. Weighing just 1.4 kg and measuring 365 mm in length with a compact 52 mm height profile, the CP3550-180ES sits comfortably in the hand during extended use, reducing operator fatigue without sacrificing control. The slim, ergonomic housing makes it particularly well-suited for work in confined spaces where larger tools simply cannot reach. A 26 mm side-to-centre dimension further reinforces its suitability as a precision pneumatic die grinder designed for tight-clearance environments. Built to Chicago Pneumatic's exacting standards, this cp die grinder reflects decades of engineering expertise in compressed-air tooling. The 6 mm collet accepts a wide range of standard die grinding accessories, making it a versatile addition to any professional toolkit. As a robust air die grinder, the CP3550-180ES is the go-to choice for fabricators, maintenance engineers, and automotive technicians who require consistent, high-speed rotary grinding performance across metal, composite, and weld preparation tasks throughout a full working shift.Product Feature: Industrial grade durability up to 1,000 hours between maintenance intervals Streamlined safety lever for operator safety. 1.5 hp (1,100 W) governed motor to maintain maximal abrasive speed Spindle lock button allows for fast carbide burr replacement to reduce tool downtime About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Height (H): 52 mm
- Length (L): 365 mm
- Side to Center: 26 mm
- Weight: 1.4 kg
- Max power: 1100 W
- Free Speed: 18000 rpm
- Air consumption at free speed: 17 l/s
- Air consumption at load: 26 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 92 dB(A)
- Sound Pressure: 81 dB(A)
- Vibration (m/s²): <2.5
- Angle Type: 90°
- Collet max capacity: 1/4 (6.35mm)
- Collet/Collet holder/Collet nut type: Erickson series 200 type
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: Yes
- Spindle lock: Yes
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
