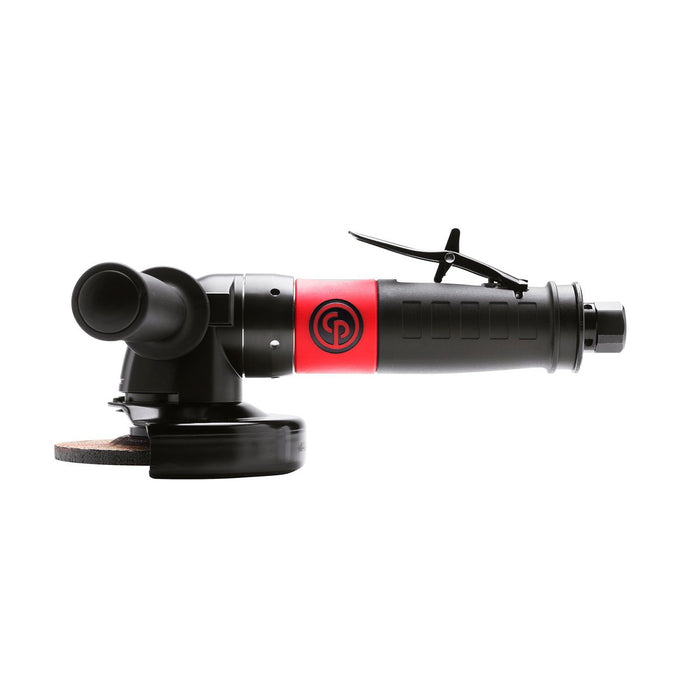

Chicago Pneumatic CP3550-120AB5, 5" Air Angle Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151607790
The Chicago Pneumatic CP3550-120AB5 is a high-performance 5-inch pneumatic angle grinder engineered for professionals who demand reliability and power in demanding industrial environments. Delivering 1,100 watts of output through a robust air-driven motor, this chicago pneumatic air grinder operates at a free speed of 12,000 RPM, providing the rotational force needed to tackle heavy-duty grinding, cutting, and surface preparation tasks with confidence. Designed to accept 125 mm (5-inch) abrasive discs, the CP3550-120AB5 draws 17 litres per second of air consumption at free speed, making efficient use of compressed air systems commonly found in fabrication shops, shipyards, and construction environments. The guard system offers a generous 130-degree maximum rotation, allowing operators to reposition the protective shield to suit different working angles without compromising safety or accessibility. As a trusted chicago pneumatic grinder, the CP3550-120AB5 carries the build quality and engineering heritage that tradespeople have come to rely on from the Chicago Pneumatic brand. Its straightforward, rugged construction minimises downtime and simplifies maintenance, keeping productivity high across demanding shift cycles. This cp die grinder is ideally suited for metal fabrication professionals, maintenance engineers, and industrial contractors requiring a dependable pneumatic angle grinder for weld blending, rust removal, and aggressive material stock removal on steel, stainless, and cast iron surfaces throughout the working day.Product Feature: Industrial grade durability up to 1,000 hours between maintenance intervals Streamlined safety lever and 1.5 hp (1,100 W) governed motor for operator safety Steel housing with an insulating composite over-housing for operator comfort Spindle lock button for fast abrasive replacement reducing tool downtime Rotative Inlet swivel maintains tool operation and avoids air hose knots About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Free Speed: 12000 rpm
- Air consumption at free speed: 17 l/s
- Auto balancer: No
- Guard max rotation: 130 °
- Guard positions: 5
- Main Material type: Aluminium, Composite over-sleeve
- Output Spindle Thread: 5/8-11 UNC
- Rotative guard type: Pull and Turn
- Spindle lock: Yes
- Starting system: Safety lever
- Swiveling guard: Keyless
- Wheel/Disc diameter (in): 5
- Wheel/Disc diameter (mm): 125
- Sound Power: 95 dB(A)
- Sound Pressure: 84 dB(A)
- Uncertainty vibration-K: 4.4 m/s²
- Vibration: 9.8 m/s²
- Air consumption at load: 26 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Height (H): 99 mm
- Length (L): 252 mm
- Side to Center: 29 mm
- Weight: 1.9 kg
- Max power: 1100 W
-
New Grade - 24 Months Warranty from purchase is available on this product.
