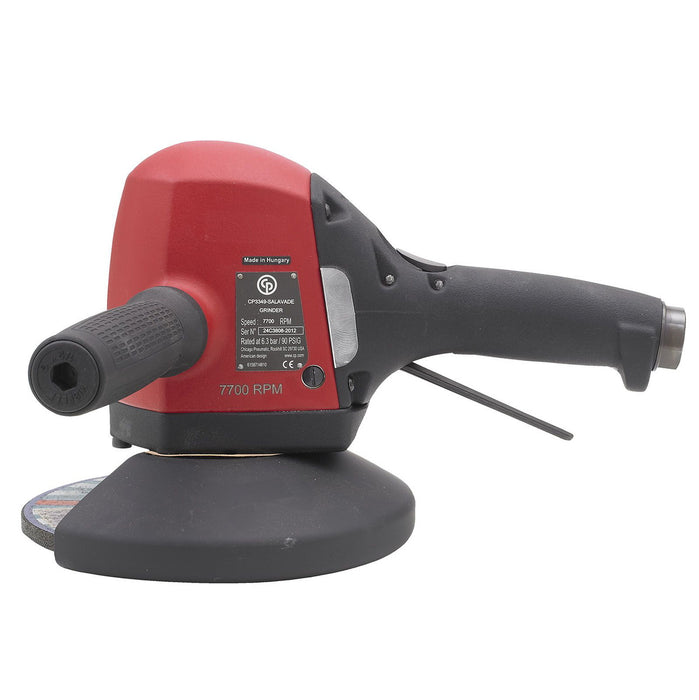

Chicago Pneumatic CP3349-SALAVADE, 7"(180 mm) Vertical Grinder, 3000 W Power – 6151609110
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151609110
The CP3349 vertical grinder - 6" to 9" (150 to 230 mm) is designed with a powerful governed motor of 4 hp/3000 W and a free speed from 6,000 to 7,700 rpm. The Series features a curved design to increase control and comfort, a safety lever, a reinforced rubber grip, and high resistance protective guard. Built-in oil tank for high durability, it offers up to 2000 h maintenance intervals. Tools are equipped with 5/8-11' spindle thread. The range consists of 5 models: CP3349-SALAVEL, SALAVET for ANSI NA market and CP3349-SALAVADE, SALAVETE, SALAVELE for CE market.Product Feature: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Double ergonomic action safety lever facilitates single-handed engagement and helps reduce risk of accidental start up An ergonomic handle to promote a good operating position by keeping the operator’s wrist straight Built-in lubricant tank for constant lubrication, reducing failure and increasing tool lifetime Reinforced rubber grip side handle provides a steady grip, increasing operator grinding control
-
- Air consumption at load: 46 l/s
- Air inlet thread size (in): 1/2
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.63 in
- Min hose diam (5 m hose length): 15 mm
- Max power: 3000 W
- Length (L): 280 mm
- Weight: 4.2 kg
- Autobalancer: No
- Exhaust: Side
- Main Material type: Aluminium
- Output Spindle Thread: 5/8-11 UNC
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
- Swiveling guard: No
- Wheel/Disc diameter (in): 7
- Wheel/Disc diameter (mm): 180
- Air consumption at free speed: 19 l/s
- Overspeed shut-off: Yes
- Sound Power: 99 dB(A)
- Sound Pressure: 88 dB(A)
- Vibration: 4.6 m/s²
-
New Grade - 24 Months Warranty from purchase is available on this product.
