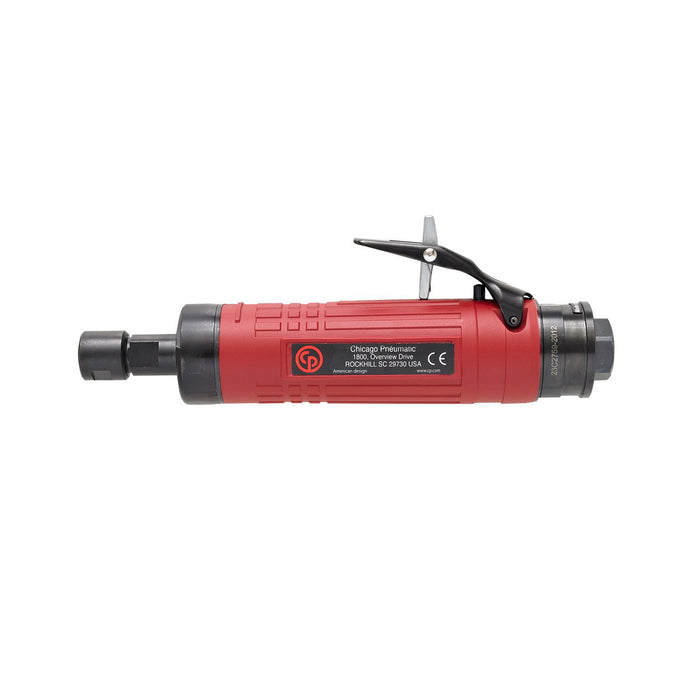

Chicago Pneumatic CP3119-22, 1/4"(6mm) Straight Air Die Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151600080
The Chicago Pneumatic CP3119-22 is a high-performance 1/4-inch air die grinder engineered for professionals who demand precision, power, and endurance in demanding finishing and material removal tasks. Delivering an impressive 900 W of maximum power alongside a blistering 22,000 RPM free speed, this pneumatic die grinder gives operators the cutting force needed to tackle grinding, deburring, polishing, and porting work with consistent, reliable results. Weighing just 1 kg and measuring a compact 222 mm in length, the CP3119-22 sits comfortably in the hand during extended use, reducing operator fatigue without sacrificing control. Its slim, well-balanced body makes it especially effective in confined spaces where a larger tool simply cannot reach, offering the kind of accessibility that professionals in automotive, fabrication, and aerospace environments truly value. The tool operates at an air consumption rate of 13 l/s at free speed, making it compatible with standard workshop compressor setups while maintaining efficient airflow throughout the working cycle. The 6 mm collet accepts a wide range of mounted points, carbide burrs, and abrasive accessories, adding genuine versatility to an already capable cp die grinder. Whether finishing weld seams on a production line, porting engine components in an automotive workshop, or performing precision deburring in a metal fabrication bay, the Chicago Pneumatic CP3119-22 air die grinder delivers the speed, balance, and power output that experienced tradespeople rely on every day.Product Feature: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever for operator safety Available with extended body with one-piece steel structure for high resistance Powerful 1.2 hp (900 W) governed motor Steel housing with an insulating composite over-housing for operator comfort and superior ergonomics About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 222 mm
- Weight: 1 kg
- Max power: 900 W
- Free Speed: 22000 rpm
- Air consumption at free speed: 13 l/s
- Air consumption at load: 18 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 92 dB(A)
- Sound Pressure: 81 dB(A)
- Vibration (m/s²): <2.5
- Angle Type: Straight
- Collet max capacity: 1/4 (6.35mm)
- Collet/Collet holder/Collet nut type: Erickson series 200 type
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
