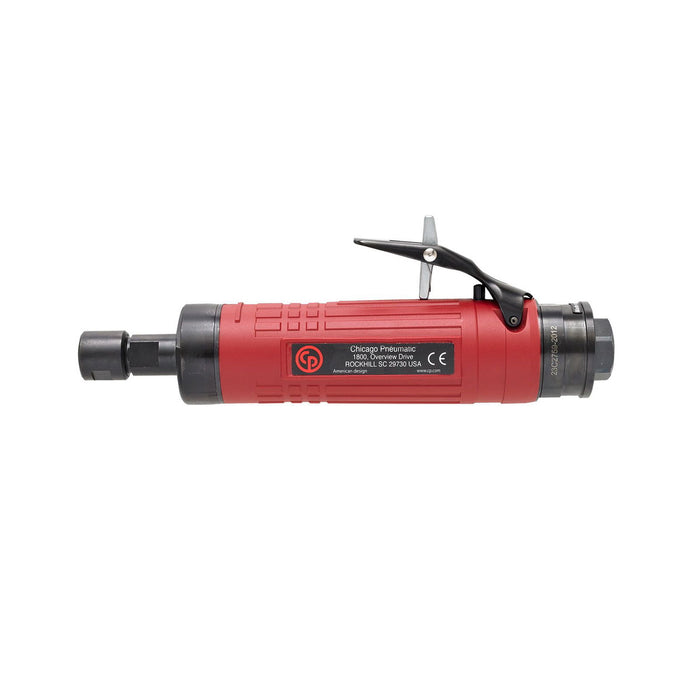

Chicago Pneumatic CP3119-18, 1/4"(6mm) Straight Air Die Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151600070
The Chicago Pneumatic CP3119-18 is a high-performance 1/4'' air die grinder engineered for professionals who demand precision, power, and endurance in demanding industrial environments. Delivering an impressive 900 W of maximum power at 18,000 RPM free speed, this pneumatic die grinder strikes an exceptional balance between raw performance and refined control, making it one of the most capable tools in its class. Weighing just 1 kg and measuring a compact 222 mm in length, the CP3119-18 handles with remarkable ease during extended use, reducing operator fatigue without sacrificing capability. Its ergonomic form factor makes it a natural choice for tight access areas where a larger grinder simply cannot perform. Air consumption at free speed runs at 10 l/s, reflecting an efficient design that gets the most from a standard compressed air supply. As a professional-grade chicago pneumatic die grinder, the CP3119-18 accepts standard 1/4'' (6 mm) collet tooling, giving users access to a vast range of burrs, mounted points, and abrasive accessories. The smooth throttle response and consistent speed delivery characteristic of this cp die grinder make it equally effective whether operators are removing weld spatter, deburring castings, porting cylinder heads, or finishing fabricated metalwork. From automotive workshops and aerospace maintenance bays to heavy fabrication and general engineering, this air die grinder delivers reliable, repeatable results shift after shift.Product Feature: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever for operator safety Available with extended body with one-piece steel structure for high resistance Powerful 1.2 hp (900 W) governed motor Steel housing with an insulating composite over-housing for operator comfort and superior ergonomics About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 222 mm
- Weight: 1 kg
- Max power: 900 W
- Free Speed: 18000 rpm
- Air consumption at free speed: 10 l/s
- Air consumption at load: 18 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 91 dB(A)
- Sound Pressure: 80 dB(A)
- Uncertainty vibration-K: 1.8 m/s²
- Vibration: 2.9 m/s²
- Angle Type: Straight
- Collet max capacity: 1/4 (6.35mm)
- Collet/Collet holder/Collet nut type: Erickson series 200 type
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
