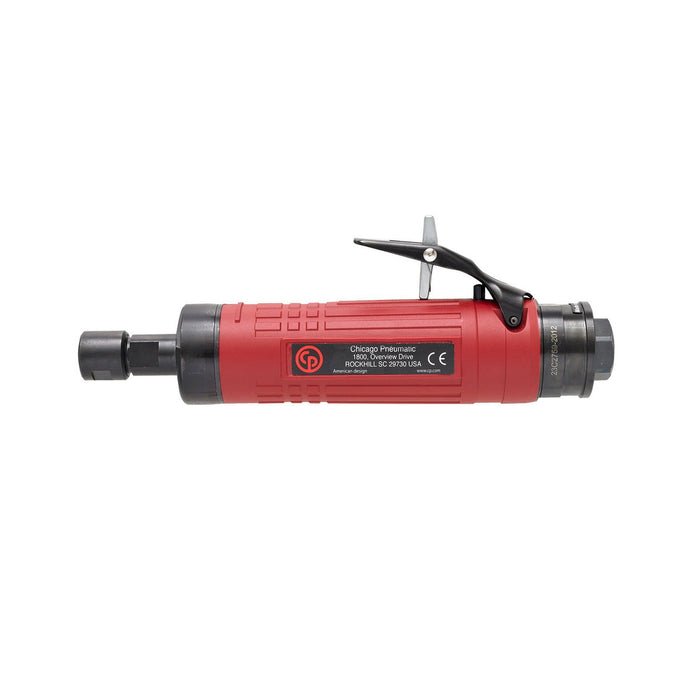

Chicago Pneumatic CP3119-15, 1/4"(6mm) Straight Air Die Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151600060
The Chicago Pneumatic CP3119-15 is a precision-engineered 1/4-inch air die grinder built for professionals who demand consistent performance and reliability in demanding industrial environments. Delivering a maximum free speed of 15,000 RPM and an impressive 900 W of power output, this pneumatic die grinder offers the rotational force needed to tackle grinding, deburring, polishing, and surface preparation tasks with ease and accuracy. Weighing just 1 kg and measuring 222 mm in length, the CP3119-15 strikes an ideal balance between power and ergonomic comfort, allowing operators to work for extended periods without excessive fatigue. Its compact, slender profile makes it an excellent choice as a pencil die grinder where access to tight spaces and restricted cavities is essential. The air consumption at free speed sits at 8 l/s, reflecting an efficient design that makes good use of compressed air supply without placing undue strain on shop systems. As a high-quality cp die grinder from one of the industry's most trusted manufacturers, the Chicago Pneumatic CP3119-15 is engineered to meet the expectations of automotive technicians, fabricators, aerospace maintenance crews, and general engineering professionals alike. Whether smoothing weld seams, removing casting flash, or finishing precision components, this chicago pneumatic die grinder delivers the speed, control, and durability that serious tradespeople rely on every working day.Product Feature: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever for operator safety Available with extended body with one-piece steel structure for high resistance Powerful 1.2 hp (900 W) governed motor Steel housing with an insulating composite over-housing for operator comfort and superior ergonomics About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 222 mm
- Weight: 1 kg
- Max power: 900 W
- Free Speed: 15000 rpm
- Air consumption at free speed: 8 l/s
- Air consumption at load: 17 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 92 dB(A)
- Sound Pressure: 81 dB(A)
- Uncertainty vibration-K: 2.2 m/s²
- Vibration: 3.8 m/s²
- Angle Type: Straight
- Collet max capacity: 1/4 (6.35mm)
- Collet/Collet holder/Collet nut type: Erickson series 200 type
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
