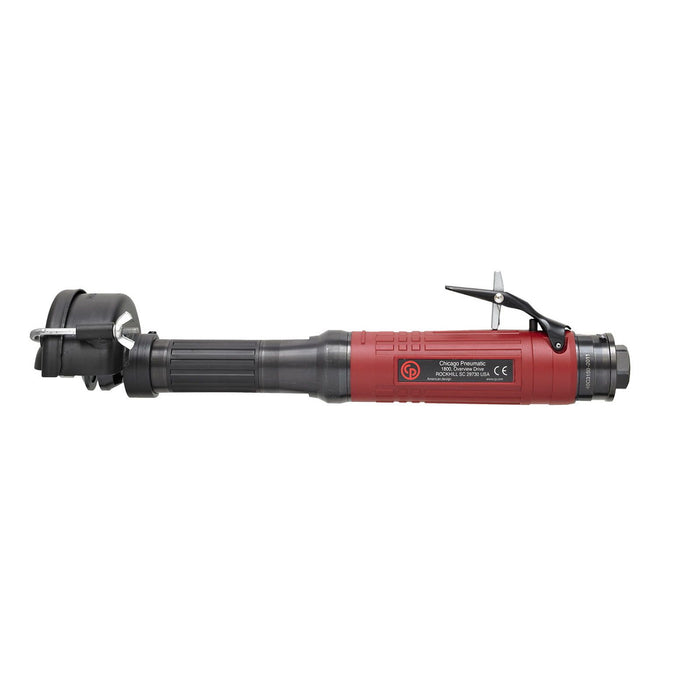

Chicago Pneumatic CP3119-12ES3, 3" Air Straight Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151606010
The Chicago Pneumatic CP3119-12ES3 straight grinder delivers 900 W of consistent power through a 12,000 RPM ball governor-regulated motor, making it one of the most capable chicago pneumatic air grinder options available for demanding industrial grinding applications. Designed with precision and operator comfort in mind, this 75 mm straight grinder features a durable aluminium body paired with a composite over-sleeve that absorbs vibration during extended use, reducing operator fatigue across long production shifts. The rear exhaust design channels spent air efficiently away from the work surface and the operator, keeping sightlines clear and maintaining a cleaner working environment. The ball governor ensures motor speed remains stable under load, protecting both the tool and the workpiece from the inconsistencies that arise when RPM fluctuates unpredictably. As a chicago pneumatic die grinder built to professional standards, this model pairs the brand's renowned engineering heritage with an output spindle configuration suited to a broad range of mounted points, grinding wheels, and burrs. Constructed from lightweight yet resilient materials, the CP3119-12ES3 strikes an ideal balance between durability and manoeuvrability, allowing precise control in tight access areas. This cp die grinder is particularly well suited to weld dressing, deburring, surface preparation, and detailed metalwork in automotive manufacturing, fabrication shops, and aerospace maintenance environments where consistent performance and reliability are non-negotiable.Product Feature: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever and 1.2 hp (900 W) governed motor for operator safety Long steel housing with an insulating composite over-housing for operator comfort Superior ergonomics with 2-handed handling About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Auto balancer: No
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Output Spindle Thread: 3/8-24 UNF
- Rotative guard type: Band
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
- Wheel/Disc diameter (in): 3
- Wheel/Disc diameter (mm): 75
- Wheel thickness (in): 1/2
- Wheel thickness (mm): 13
- Max power: 900 W
- Air consumption at load: 16 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Free Speed: 12000 rpm
- Air consumption at free speed: 7 l/s
- Overspeed shut-off: No
- Length (L): 338 mm
- Weight: 1.7 kg
- Sound Power: 92 dB(A)
- Sound Pressure: 81 dB(A)
- Vibration (m/s²): <2.5
-
New Grade - 24 Months Warranty from purchase is available on this product.
