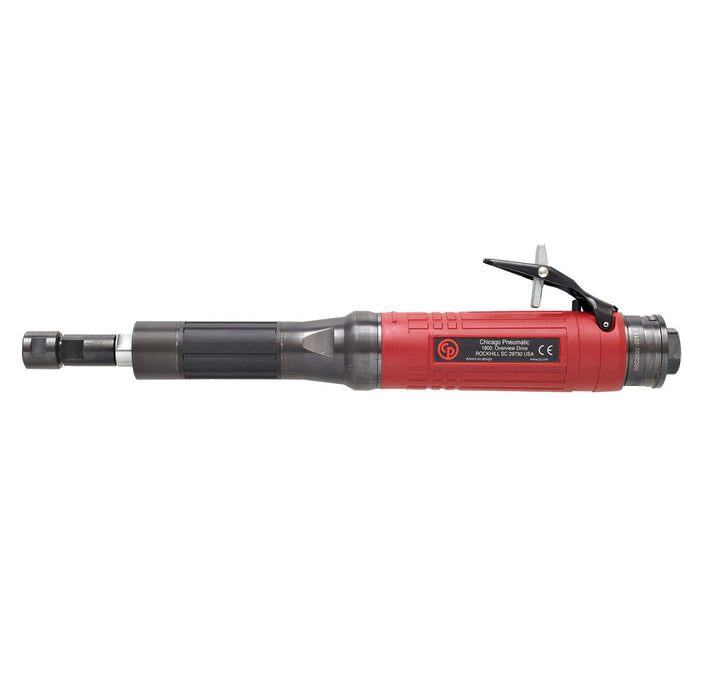

Chicago Pneumatic CP3109-24ES, 1/4"(6mm) Straight Air Die Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151602090
The Chicago Pneumatic CP3109-24ES is a high-performance pneumatic die grinder engineered for professionals who demand precision, power, and endurance in demanding industrial environments. Delivering an impressive 600 W of maximum power with a free speed of 24,000 RPM, this air die grinder offers the rotational force needed to tackle aggressive material removal, surface preparation, and finishing tasks with exceptional efficiency. Its 1/4'' (6 mm) collet size accommodates a wide range of mounted points, carbide burrs, and grinding bits, making it a genuinely versatile addition to any workshop or production line. Weighing just 1.3 kg and measuring 361 mm in length, the CP3109-24ES strikes an ideal balance between reach and manageability, reducing operator fatigue during extended use. The slender pencil die grinder profile allows access to confined spaces and intricate workpieces where bulkier tools simply cannot reach. Air consumption at free speed sits at 10 l/s, ensuring it integrates smoothly with standard compressed air systems without placing excessive demand on supply infrastructure. As a trusted chicago pneumatic die grinder, this model is built to the brand's exacting quality standards, offering the reliability and longevity that maintenance engineers, fabricators, and automotive professionals expect from a cp die grinder. Whether used for weld dressing, port matching, deburring castings, or detailed metalwork, the CP3109-24ES delivers consistent, controlled performance across every application.Product Feature: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever for operator safety Steel housing with an insulating composite over-housing for operator comfort and superior ergonomics Powerful 0.8hp (600 W) governed motor About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 361 mm
- Weight: 1.3 kg
- Max power: 600 W
- Free Speed: 24000 rpm
- Air consumption at free speed: 10 l/s
- Air consumption at load: 15 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 92 dB(A)
- Sound Pressure: 81 dB(A)
- Vibration (m/s²): <2.5
- Angle Type: Straight
- Collet max capacity: 1/4 (6.35mm)
- Collet/Collet holder/Collet nut type: Erickson series 200 type
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
