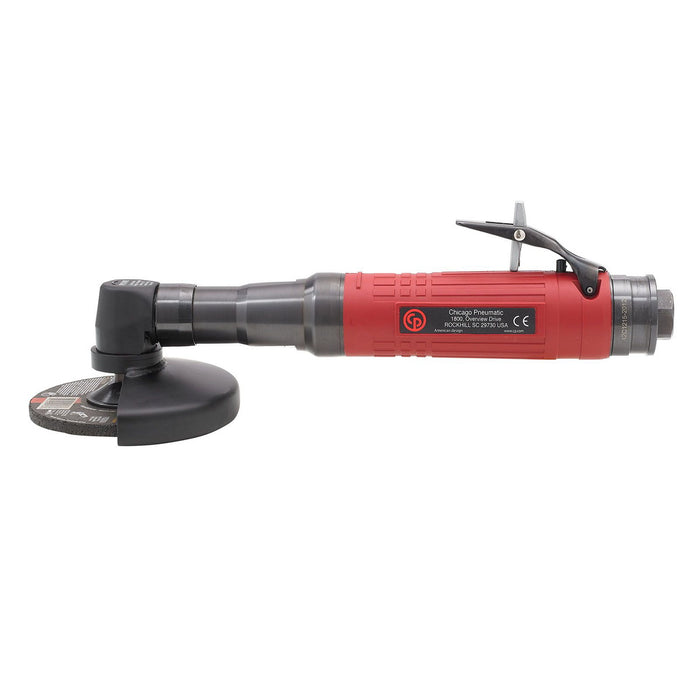

Chicago Pneumatic CP3109-13A4ES, 4" Air Angle Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151607040
The Chicago Pneumatic CP3109-13A4ES delivers the precision and raw cutting power that demanding fabrication and metalworking environments require, making it an essential addition to any professional's pneumatic tool arsenal. Engineered as a compact yet capable 4-inch air angle grinder, this chicago pneumatic air grinder operates at a free speed of 13,000 RPM, giving operators the high-velocity performance needed to tackle grinding, cutting, and surface preparation tasks with consistent efficiency. Powered by a robust 600 W motor and drawing 10 litres per second of air consumption at free speed, the CP3109-13A4ES is built to perform reliably during extended production runs without compromising output. The 360-degree guard rotation offers exceptional flexibility, allowing the user to position the guard precisely for optimal safety across a wide range of working angles and orientations - a feature that experienced tradespeople will immediately appreciate on the job. As a trusted chicago pneumatic grinder in the CP series range, this model reflects the brand's reputation for engineering durable, high-performance pneumatic solutions. The tool's straightforward, no-frills design prioritises user comfort and operational consistency, with an air inlet and overall form factor suited to workshop and site conditions alike. The CP3109-13A4ES is ideally suited to automotive bodyshops, structural steel fabrication, shipbuilding facilities, and general engineering workshops where a reliable and powerful 4-inch chicago pneumatic air grinder is required for continuous grinding and finishing applications.Product Feature: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever Governed motor for operator safety Steel housing with an insulating composite over-housing for operator comfort and superior ergonomics Standard or extended shaft About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Free Speed: 13000 rpm
- Air consumption at free speed: 10 l/s
- Auto balancer: No
- Guard max rotation: 360 °
- Guard positions: 0
- Main Material type: Aluminium, Composite over-sleeve
- Output Spindle Thread: 3/8-24 UNF
- Rotative guard type: Band
- Spindle lock: No
- Starting system: Safety lever
- Swiveling guard: Key
- Wheel/Disc diameter (in): 4
- Wheel/Disc diameter (mm): 100
- Sound Power: 95 dB(A)
- Sound Pressure: 84 dB(A)
- Uncertainty vibration-K: 2.4 m/s²
- Vibration: 7.2 m/s²
- Air consumption at load: 15 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Length (L): 287 mm
- Weight: 1.5 kg
- Max power: 600 W
-
New Grade - 24 Months Warranty from purchase is available on this product.
