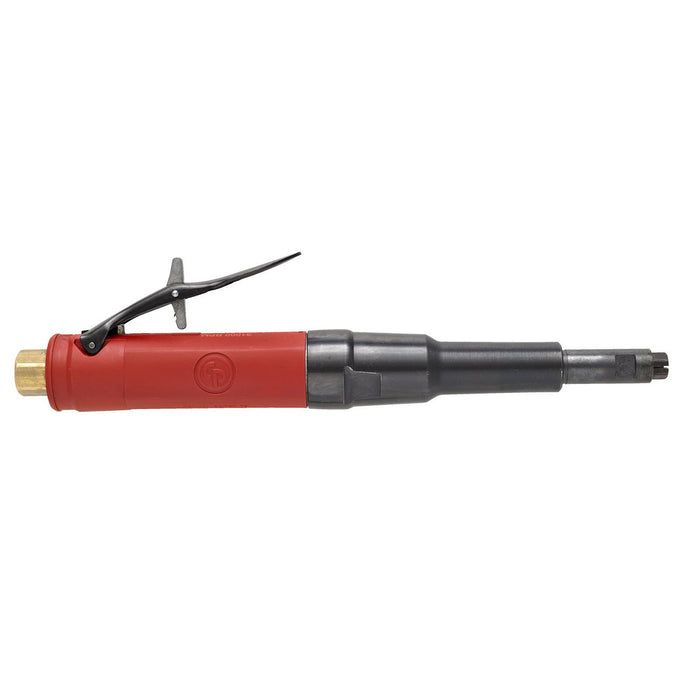

Chicago Pneumatic CP3019-31ES, 1/4"(6mm) Straight Air Die Grinder (CNOMO)
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151602230
The Chicago Pneumatic CP3019-31ES CNOMO is a precision-engineered 1/4-inch air die grinder built for professionals who demand consistent, high-performance results in demanding industrial environments. Delivering an impressive 375 W of maximum power and a free speed of 31,000 RPM, this pneumatic die grinder handles aggressive material removal, deburring, porting, and surface finishing with remarkable efficiency and control. Weighing just 0.57 kg and measuring 249 mm in length, the CP3019-31ES occupies the sweet spot between a standard air die grinder and a pencil die grinder, offering the reach and balance needed for intricate work in confined spaces. Its ergonomic, slim-line body reduces operator fatigue during extended use, making it a natural choice for production lines and fabrication shops where tools are in constant operation. The CNOMO-compliant design ensures compatibility with standardised tooling systems widely used across European automotive and aerospace manufacturing. With an air consumption of 4.7 l/s at free speed, the Chicago Pneumatic CP die grinder integrates smoothly into existing compressed air networks without placing excessive demand on supply infrastructure. This chicago pneumatic die grinder is ideally suited for metal finishing, weld blending, mould preparation, and precision grinding tasks where accuracy and reliability are non-negotiable. It is the tool of choice for maintenance engineers, die makers, and production technicians who need a dependable air pencil grinder to meet the tightest tolerances day after day.Product Feature: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever for operator safety Powerful 0.5 hp (375 W) governed motor ensures safety Compact body with an insulating composite over-housing for operator comfort and superior ergonomics About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 249 mm
- Weight: 0.57 kg
- Max power: 375 W
- Free Speed: 31000 rpm
- Air consumption at free speed: 4.7 l/s
- Air consumption at load: 9.4 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.31 in
- Min hose diam (5 m hose length): 8 mm
- Sound Power: 91 dB(A)
- Sound Pressure: 80 dB(A)
- Vibration (m/s²): <2,5
- Angle Type: Straight
- Collet max capacity: 6mm (only for Die Grinders)
- Collet/Collet holder/Collet nut type: Cnomo type
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
