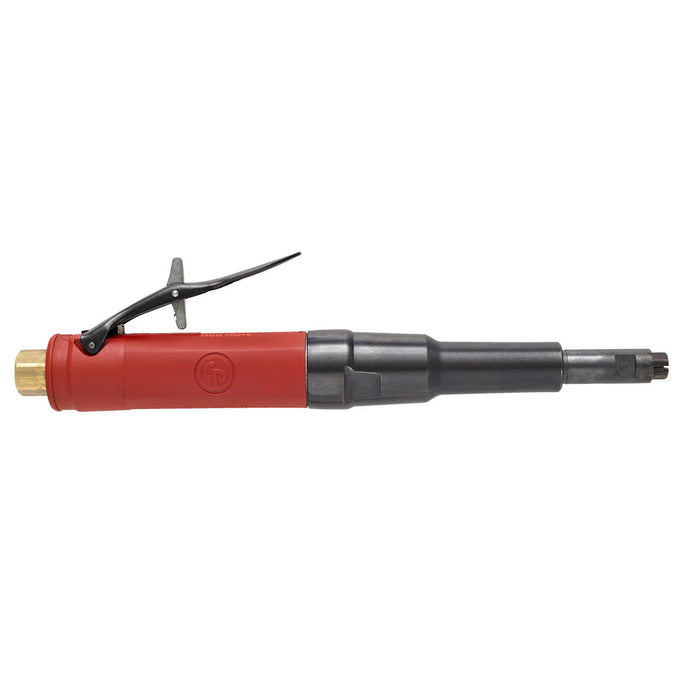

Chicago Pneumatic CP3019-25ES, 1/4"(6mm) Straight Air Die Grinder (CNOMO)
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151602220
The Chicago Pneumatic CP3019-25ES CNOMO delivers professional-grade performance in a remarkably compact and lightweight package, making it one of the most capable quarter-inch air die grinders available for precision metalworking applications. Weighing just 0.57 kg and measuring 249 mm in length, this pneumatic die grinder sits comfortably in the hand during extended use, reducing operator fatigue without compromising on power or control. At the heart of this cp die grinder is a robust 375 W motor that drives the spindle to an impressive 25,000 rpm free speed, providing the rotational force needed to tackle deburring, grinding, and surface finishing tasks with consistent efficiency. Air consumption at free speed registers at 3.6 l/s, reflecting a well-engineered balance between power output and compressed air demand that helps keep running costs manageable across a full shift. The CNOMO standard compliance makes this chicago pneumatic die grinder a natural fit for automotive and aerospace assembly environments where tooling compatibility and interchangeability are essential requirements. Its slim pencil-style profile allows access into tight cavities and recessed areas that bulkier grinders simply cannot reach, giving technicians a decisive advantage when working on complex components. Whether tackling weld bead removal, port matching, or fine surface preparation on ferrous and non-ferrous metals, this air die grinder is built to meet the demands of production lines, fabrication shops, and maintenance workshops where precision and reliability are non-negotiable every single day.Product Feature: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever for operator safety Powerful 0.5 hp (375 W) governed motor ensures safety Compact body with an insulating composite over-housing for operator comfort and superior ergonomics About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 249 mm
- Weight: 0.57 kg
- Max power: 375 W
- Free Speed: 25000 rpm
- Air consumption at free speed: 3.6 l/s
- Air consumption at load: 9 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.31 in
- Min hose diam (5 m hose length): 8 mm
- Sound Power: 89 dB(A)
- Sound Pressure: 78 dB(A)
- Uncertainty vibration-K: 2.4 m/s²
- Vibration: 4.7 m/s²
- Angle Type: Straight
- Collet max capacity: 6mm (only for Die Grinders)
- Collet/Collet holder/Collet nut type: Cnomo type
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
