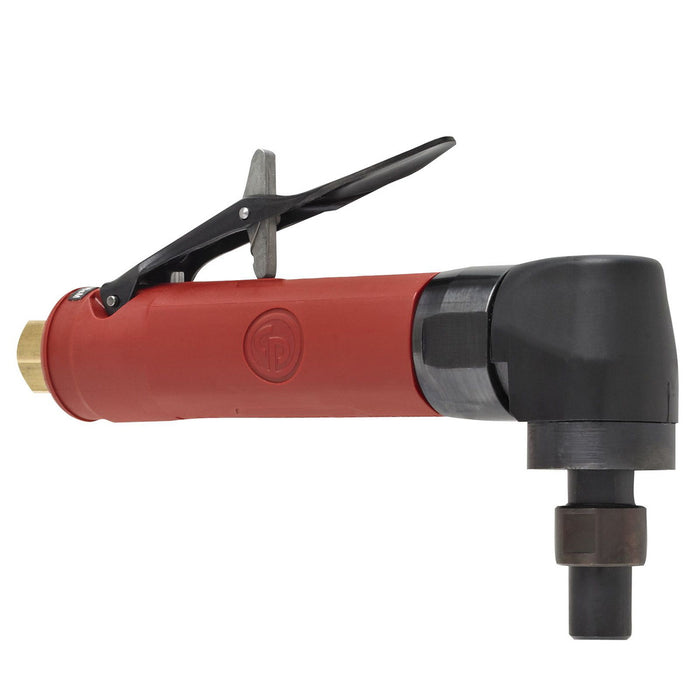

Chicago Pneumatic CP3019-20AC, 1/4"(6mm) Angle Air Die Grinder (CNOMO)
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151604240
The Chicago Pneumatic CP3019-20AC CNOMO delivers precision and power in one of the most compact angle die grinder packages available, making it a standout choice for professionals who demand reliable performance in confined workspaces. Engineered to CNOMO standards, this chicago pneumatic die grinder combines a robust 375 W maximum power output with a 20,000 RPM free speed, giving operators the cutting edge they need for grinding, deburring, and surface finishing across metal fabrication, automotive, and aerospace applications. Weighing just 0.51 kg and measuring 216 mm in length, the CP3019-20AC sits comfortably in the hand during extended use, reducing operator fatigue without sacrificing capability. The 1/4'' (6 mm) collet accepts a wide range of standard accessories, while an air consumption rate of 5.3 l/s at free speed ensures efficient use of compressed air supply - an important consideration for workshop productivity and running costs. As a pneumatic die grinder built to CNOMO specifications, it integrates seamlessly into standardised European manufacturing environments where interchangeability and consistency matter. The lightweight aluminium housing and refined ergonomics make this cp die grinder equally effective for precision detail work as for demanding production-line tasks. Whether tackling weld seam removal, cavity finishing in die and mould work, or intricate deburring on tight-tolerance components, this air die grinder is the tool professionals reach for when accuracy and endurance are non-negotiable.Product Feature: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever for operator safety Powerful 0.5 hp (375 W) governed motor ensures safety Compact body with an insulating composite over-housing for operator comfort and superior ergonomics About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 216 mm
- Weight: 0.51 kg
- Max power: 375 W
- Free Speed: 20000 rpm
- Air consumption at free speed: 5.3 l/s
- Air consumption at load: 9.4 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.31 in
- Min hose diam (5 m hose length): 8 mm
- Sound Power: 93 dB(A)
- Sound Pressure: 82 dB(A)
- Uncertainty vibration-K: 3.4 m/s²
- Vibration: 4.3 m/s²
- Angle Type: 90°
- Collet max capacity: 1/4 (6.4mm)
- Collet/Collet holder/Collet nut type: Cnomo type
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
