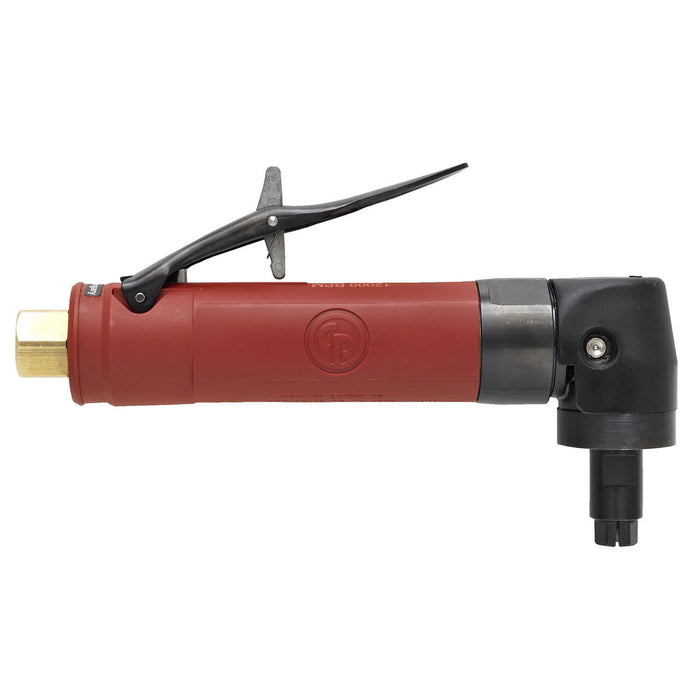

Chicago Pneumatic CP3019-12AC, 1/4"(6mm) Angle Air Die Grinder (CNOMO)
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151604230
The Chicago Pneumatic CP3019-12AC CNOMO delivers professional-grade performance in a remarkably compact, lightweight package that serious fabricators and maintenance engineers trust for precision material removal. Weighing just 0.51 kg and measuring 216 mm in length, this air die grinder is engineered for extended use in tight, restricted spaces where operator fatigue and manoeuvrability are critical concerns. The 1/4-inch (6 mm) collet accepts a wide range of burrs, mounted points, and abrasive accessories, making it one of the most versatile pneumatic die grinders available in its class. Producing a free speed of 12,000 rpm and a maximum power output of 375 W, the CP3019-12AC CNOMO delivers consistent, controlled cutting and grinding performance across a variety of materials including steel, aluminium, and composite surfaces. Air consumption at free speed registers an efficient 3.2 l/s, ensuring the tool integrates smoothly into existing compressed air systems without placing excessive demand on supply infrastructure. The CNOMO interface standardises connection, a particularly valued feature in automotive and aerospace production environments where tooling compatibility is paramount. As a cp die grinder built to meet the exacting demands of industrial applications, this chicago pneumatic die grinder excels at weld seam blending, deburring, port matching, and surface preparation in assembly lines, fabrication workshops, and maintenance facilities where precision, durability, and all-day ergonomic comfort are non-negotiable requirements.Product Feature: Highest durability in demanding applications, up to 2,000 hours maintenance intervals Streamlined safety lever for operator safety Powerful 0.5 hp (375 W) governed motor ensures safety Compact body with an insulating composite over-housing for operator comfort and superior ergonomics About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 216 mm
- Weight: 0.51 kg
- Max power: 375 W
- Free Speed: 12000 rpm
- Air consumption at free speed: 3.2 l/s
- Air consumption at load: 8 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.31 in
- Min hose diam (5 m hose length): 8 mm
- Sound Power: 89 dB(A)
- Sound Pressure: 78 dB(A)
- Uncertainty vibration-K: 1.9 m/s²
- Vibration: 3.7 m/s²
- Angle Type: 90°
- Collet max capacity: 1/4 (6.4mm)
- Collet/Collet holder/Collet nut type: Cnomo type
- Exhaust: Rear
- Governor type: Ball
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
