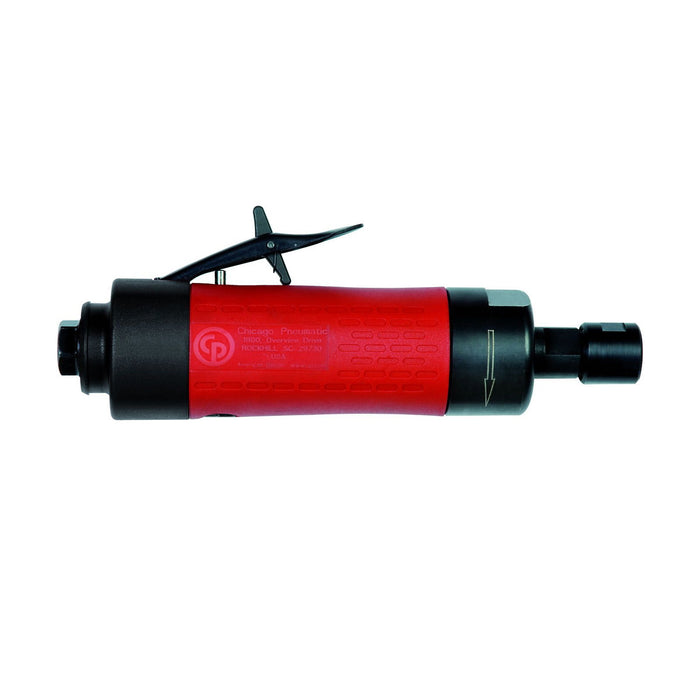

Chicago Pneumatic CP3000-520R, 1/4"(6mm) Straight Air Die Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151600290
The Chicago Pneumatic CP3000-520R delivers professional-grade performance in a compact, ergonomically balanced package that serious fabricators and maintenance engineers can rely on shift after shift. Weighing just 0.86 kg and measuring 195 mm in length, this air die grinder combines a lightweight form factor with impressive 500 W maximum power output, making it one of the most capable pneumatic die grinders in its class. The 20,000 RPM free speed ensures exceptional material removal rates and a consistently smooth finish when working on metals, composites, or castings, while the 1/4'' (6 mm) collet accepts a wide range of burrs, mounted points, and abrasive accessories for maximum versatility on the job. Engineered for balance and control, the CP3000-520R features a refined body profile that reduces operator fatigue during extended use - a critical consideration for professionals tackling repetitive grinding, deburring, or porting tasks. Air consumption at free speed sits at 15 l/s, reflecting the efficient internal design that Chicago Pneumatic consistently delivers across its cp die grinder range. The tool's robust construction meets the demands of heavy industrial environments without compromising the precision control that detail work requires. This chicago pneumatic die grinder is ideally suited for automotive bodywork and engine preparation, aerospace component finishing, metal fabrication workshops, and general maintenance applications where a reliable, high-speed air pencil grinder is essential for achieving professional results every time.Product Feature: Industrial grade durability up to 1,000 hours between maintenance intervals Compact and composite handle for a great operator comfort Up to 0.7hp (500 W) industrial grade motor and 30,000 rpm for a perfect material removal result About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 195 mm
- Weight: 0.86 kg
- Max power: 500 W
- Free Speed: 20000 rpm
- Air consumption at free speed: 15 l/s
- Air consumption at load: 13 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 91.6 dB(A)
- Sound Pressure: 80.6 dB(A)
- Vibration (m/s²): <2.5
- Angle Type: Straight
- Collet max capacity: 1/4 (6.4mm)
- Collet/Collet holder/Collet nut type: Erickson series 200 type
- Exhaust: Rear
- Governor type: NA
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
