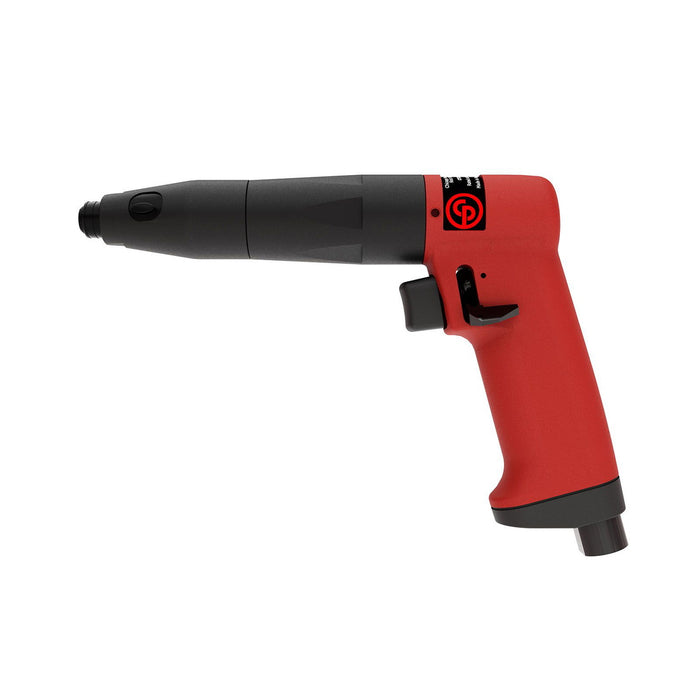

Chicago Pneumatic CP2814, 1/4" Hex Air Screwdriver
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151922005
The Chicago Pneumatic CP2814 delivers precise, repeatable fastening performance in a compact pistol-grip design, making it an essential tool for assembly lines and workshop environments where torque accuracy cannot be compromised. This pneumatic screwdriver with torque control features an automatic shut-off pneumatic valve mechanism that cuts air supply the moment the preset torque threshold is reached, eliminating the risk of overtightening and protecting sensitive components from damage. Engineered to handle a torque range of 0.4 Nm to 4.3 Nm in forward operation, the CP2814 air torque screwdriver offers the versatility needed to tackle a wide variety of fastening applications across different materials and screw sizes. The 1/4-inch hex drive accepts standard bit inserts, allowing operators to switch between tip profiles quickly and keep production moving without unnecessary downtime. As a pneumatic torque driver, this model pairs a lightweight, ergonomic pistol body with smooth throttle response, reducing operator fatigue during extended use on high-volume production tasks. Its shut-off valve technology ensures consistent joint quality from the first fastener to the last, supporting quality control processes that demand reliable, documented torque output. The Chicago Pneumatic CP2814 is ideally suited for electronics assembly, automotive component fitting, appliance manufacturing, and any application where small-format fasteners require controlled, consistent tightening with the confidence of a professional-grade air screwdriver.Product Feature: Accurate and durable shut-off clutch for various fastening Low noise level Robust aluminium body, even for heavy duty applications Convenient progressive trigger and one-hand reverse button for ergonomic handling About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max torque in forward: 4.3 Nm
- Min torque in forward: 0.4 Nm
- Torque Control System: Shut-off-pneumatic valve
- Adjustment: Key
- Body: Aluminium
- Clutch housing: Steel
- Clutch Type: Ball clutch
- Handle type: Pistol
- Main Material type: Aluminium
- Output drive size (in): 1/4
- Output drive type: Hex
- Output retainer type: Quick change
- Reversible: Yes
- Starting system: Push start
- Free Speed: 1100 rpm
- Air consumption at free speed: 6.5 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Height (H): 143 mm
- Length (L): 182 mm
- Weight: 0.8 kg
- Sound Power: 87 dB(A)
- Sound Pressure: 76 dB(A)
- Vibration (m/s²): <2.5
-
New Grade - 24 Months Warranty from purchase is available on this product.
