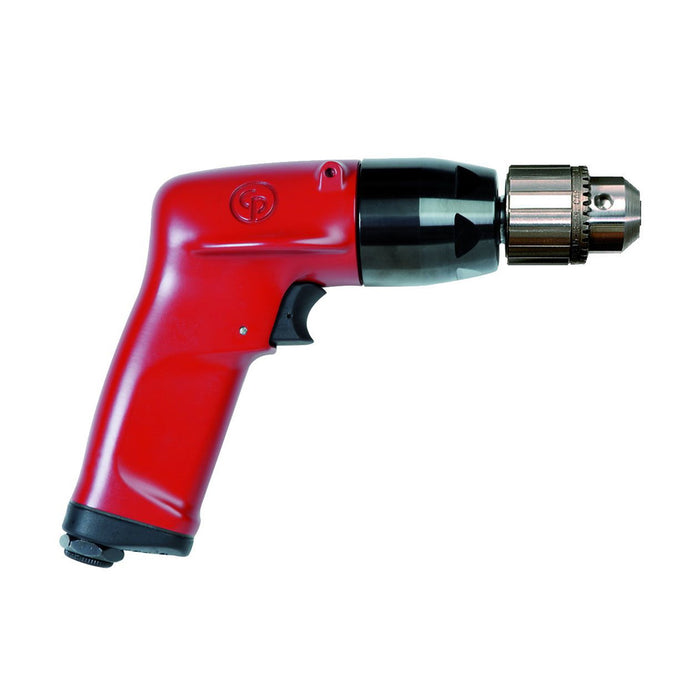

Chicago Pneumatic CP1117P26, 3/8" Air Drill
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151580130
Delivering reliable drilling performance in demanding industrial environments, the Chicago Pneumatic CP1117P26 pistol drill combines robust aluminium construction with an efficient 750W power output to tackle a wide range of fastening and drilling applications with confidence. Engineered as a precision CP air drill, this 3/8 inch keyed chuck model accepts bits up to 10mm in diameter, making it well suited to metalworking, fabrication, and assembly line tasks where consistent torque and control are essential. The chicago pneumatic air drill produces a smooth 6.3 Nm torque output, striking an effective balance between power and manoeuvrability in the pistol grip configuration. The pistol handle design promotes a natural wrist position during extended use, reducing operator fatigue and improving accuracy across repetitive drilling cycles. Constructed primarily from lightweight aluminium alloy, the tool keeps overall weight to a minimum without compromising the structural durability expected from a professional-grade chicago pneumatic drill. The 3/8 inch keyed chuck ensures a secure, precise bit engagement, eliminating slippage under load and maintaining drilling accuracy in tight tolerances. Its straightforward, tool-dependable clamping mechanism makes bit changes efficient on busy production floors. The CP1117P26 is an ideal choice for automotive workshops, metal fabrication facilities, and mechanical maintenance teams seeking a dependable cp drill capable of sustained high-cycle performance where a compact footprint and consistent air-powered output are equally valued.Product Feature: High power 1hp (750W) with excellent control by teasing throttle handle high Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrations High quality industrial pistol drill with keyless, without chuck or Jacobs industrial keyed chuck 3/8 '(10 mm) to 1/2' (13 mm) About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Chuck max capacity (in): 3/8
- Chuck max capacity (mm): 10
- Chuck type: Keyed
- Handle type: Pistol
- Main Material type: Aluminium
- Reversible: No
- Starting system: Trigger
- Trigger type: Progressive
- Sound Power: 94 dB(A)
- Sound Pressure: 83 dB(A)
- Uncertainty vibration-K: 1.7 m/s²
- Air consumption at load: 14 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Max power: 750 W
- Stall torque: 6.3 Nm
- Free Speed: 2600 rpm
- Air consumption at free speed: 16 l/s
- Length (L): 200 mm
- Weight: 0.99 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
