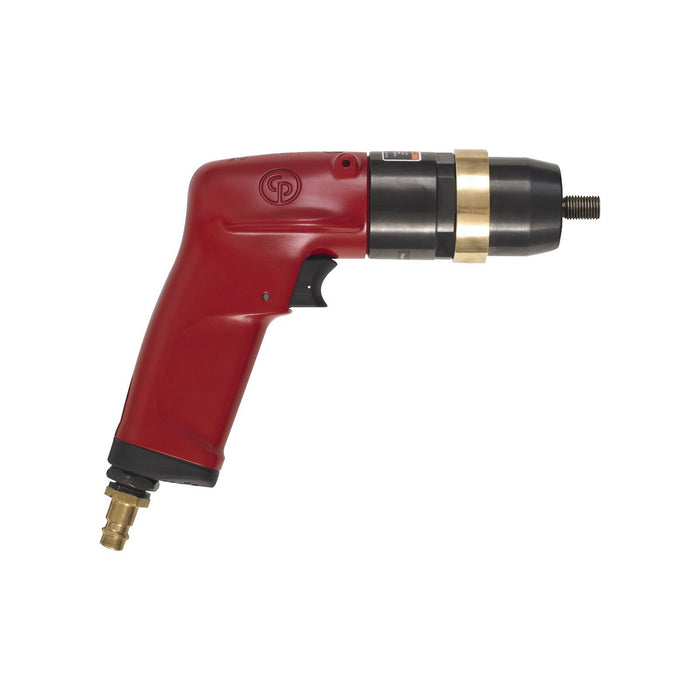

Chicago Pneumatic CP1117P09, 1/2" Air Drill - Without Chuck
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151580230
The Chicago Pneumatic CP1117P09 delivers reliable, consistent performance for industrial drilling applications where operators supply their own chuck configuration. Engineered with a robust aluminium body that keeps weight low without compromising durability, this CP air drill is built to withstand the demands of continuous production environments. The pistol-grip handle provides excellent control and operator comfort during extended use, reducing fatigue on busy shop floors and assembly lines. Producing a solid 19.1 Nm of torque through its 1/2-inch (13 mm) maximum chuck capacity spindle, the Chicago Pneumatic CP1117P09 offers the power needed to drive through a wide range of materials with precision. The chuckless design gives maintenance teams and production facilities the freedom to fit their preferred chuck or tooling directly, making it a versatile addition to any pneumatic tool inventory. As a trusted chicago pneumatic air drill, it benefits from CP's reputation for engineering quality and long service intervals, minimising downtime and total cost of ownership. The lightweight aluminium construction makes it particularly well suited to overhead work and tight-access drilling tasks where operator endurance matters. This cp air drill integrates smoothly into compressed air systems commonly found in automotive manufacturing, fabrication workshops, and general metalworking facilities. Whether used for repetitive production drilling or precision assembly work, the CP1117P09 performs with the consistency and dependability that professionals in demanding industrial settings require from a premium chicago pneumatic drill.Product Feature: High power 1hp (750W) with excellent control by teasing throttle handle high Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrations High quality industrial pistol drill with keyless, without chuck or Jacobs industrial keyed chuck 3/8 '(10 mm) to 1/2' (13 mm) About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Chuck max capacity (in): 1/2
- Chuck max capacity (mm): 13
- Chuck type: No chuck
- Handle type: Pistol
- Main Material type: Aluminium
- Reversible: No
- Starting system: Trigger
- Trigger type: Progressive
- Sound Power: 94 dB(A)
- Sound Pressure: 83 dB(A)
- Uncertainty vibration-K: 2.6 m/s²
- Air consumption at load: 14 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Max power: 750 W
- Stall torque: 19.1 Nm
- Free Speed: 900 rpm
- Air consumption at free speed: 16 l/s
- Length (L): 203 mm
- Weight: 0.99 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
