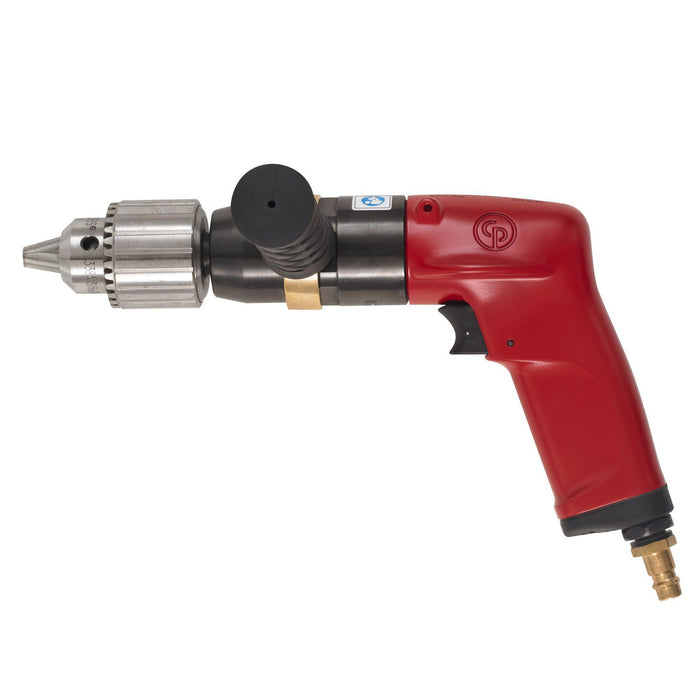

Chicago Pneumatic CP1117P05, 1/2" Air Drill
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151580170
The Chicago Pneumatic CP1117P05 delivers the precise torque control and raw power that demanding industrial drilling applications require, making it an indispensable tool for professionals who cannot afford downtime or inconsistent performance. Engineered with a robust 750 W motor and 30 Nm of torque, this chicago pneumatic air drill drives through metal, wood, and composite materials with remarkable efficiency and controlled force. Constructed from lightweight yet durable aluminium, the CP1117P05 significantly reduces operator fatigue during extended production cycles without sacrificing the structural rigidity needed in heavy-duty environments. The pistol handle design provides an ergonomic, natural grip that gives users exceptional control and manoeuvrability in confined spaces or overhead positions. A 1/2 inch (13 mm) keyed chuck ensures a secure, true-running bit engagement, accommodating a wide range of drill bit diameters and guaranteeing repeatability across high-volume tasks. As a trusted cp air drill within the Chicago Pneumatic lineup, this model is built to meet the rigorous standards expected on professional assembly lines, fabrication workshops, and maintenance floors. The cp 1 2 air drill configuration makes it equally suited to standalone workstations and integrated pneumatic systems, delivering consistent output wherever shop-floor air supply is available. Whether used for precision component drilling in automotive manufacturing, structural metalwork, or general industrial maintenance, the CP1117P05 is the reliable, performance-driven choice for teams that depend on their tools every single shift.Product Feature: High power 1hp (750W) with excellent control by teasing throttle handle high Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrations High quality industrial pistol drill with keyless, without chuck or Jacobs industrial keyed chuck 3/8 '(10 mm) to 1/2' (13 mm) About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Chuck max capacity (in): 1/2
- Chuck max capacity (mm): 13
- Chuck type: Keyed
- Handle type: Pistol
- Main Material type: Aluminium
- Reversible: No
- Starting system: Trigger
- Trigger type: Progressive
- Sound Power: 94 dB(A)
- Sound Pressure: 83 dB(A)
- Uncertainty vibration-K: 2 m/s²
- Air consumption at load: 14 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Max power: 750 W
- Stall torque: 30 Nm
- Free Speed: 500 rpm
- Air consumption at free speed: 16 l/s
- Length (L): 203 mm
- Weight: 1.53 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
