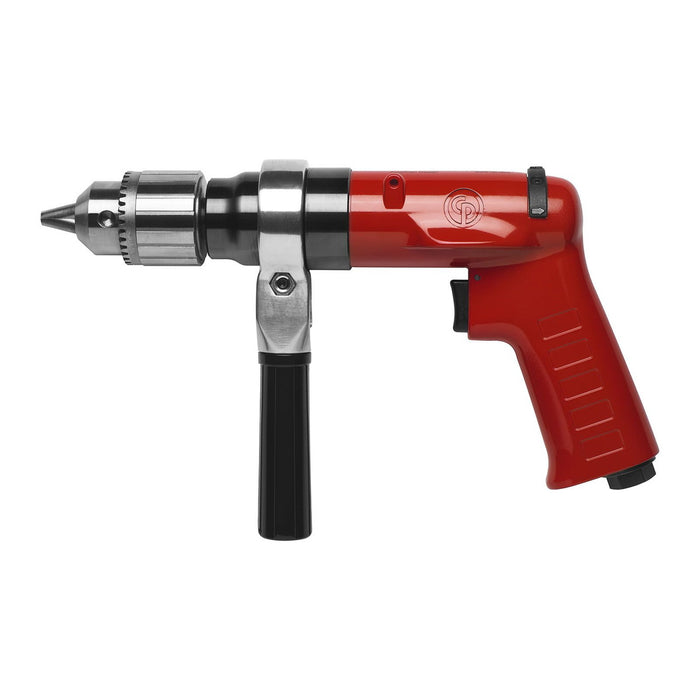

Chicago Pneumatic CP1114R09, 1/2" Air Drill
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151580320
The Chicago Pneumatic CP1114R09 delivers reliable reversible drilling performance in a lightweight aluminium pistol-grip body, making it an ideal choice for professionals who demand precision and durability in demanding workshop or production environments. Engineered as a chicago pneumatic air drill built to handle a wide range of fastening and drilling applications, this cp air drill combines solid mechanical output with an ergonomic design that reduces operator fatigue during extended use. At the core of this tool is a 16.8 Nm torque output paired with a 1/2 inch (13 mm) keyed chuck, providing a secure and accurate grip on drill bits across the full capacity range. The keyed chuck design ensures consistent bit retention, minimising slippage even under sustained load. The reversible function adds versatility, allowing operators to back out fasteners or correct drilling direction with ease, while the pistol handle configuration promotes natural wrist alignment and confident single-hand control during operation. Constructed from aluminium, the CP1114R09 keeps overall tool weight low without sacrificing structural integrity, supporting productivity over long shifts. Its compatibility with standard compressed air systems means straightforward integration into existing pneumatic setups. As a trusted chicago pneumatic air drill within the CP range, this model suits metal fabrication, automotive assembly, general maintenance, and light construction tasks where a dependable, reversible cp drill with a generous chuck capacity is required day in, day out.Product Feature: High power 0.5hp (410W) with excellent control by teasing throttle handle high Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrations High quality ) industrial pistol drill with 3/8' (10 mm) to 1/2' (13 mm) Jacobs industrial keyed capacity chuck Versatile with a forward-reverse switch for easier drilling, reaming, tapping. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Chuck max capacity (in): 1/2
- Chuck max capacity (mm): 13
- Chuck type: Keyed
- Handle type: Pistol
- Main Material type: Aluminium
- Reversible: Yes
- Starting system: Trigger
- Trigger type: Progressive
- Sound Power: 93 dB(A)
- Sound Pressure: 82 dB(A)
- Uncertainty vibration-K: 1.5 m/s²
- Air consumption at load: 12 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Max power: 400 W
- Stall torque: 16.8 Nm
- Free Speed: 900 rpm
- Air consumption at free speed: 15 l/s
- Length (L): 260 mm
- Weight: 1.8 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
