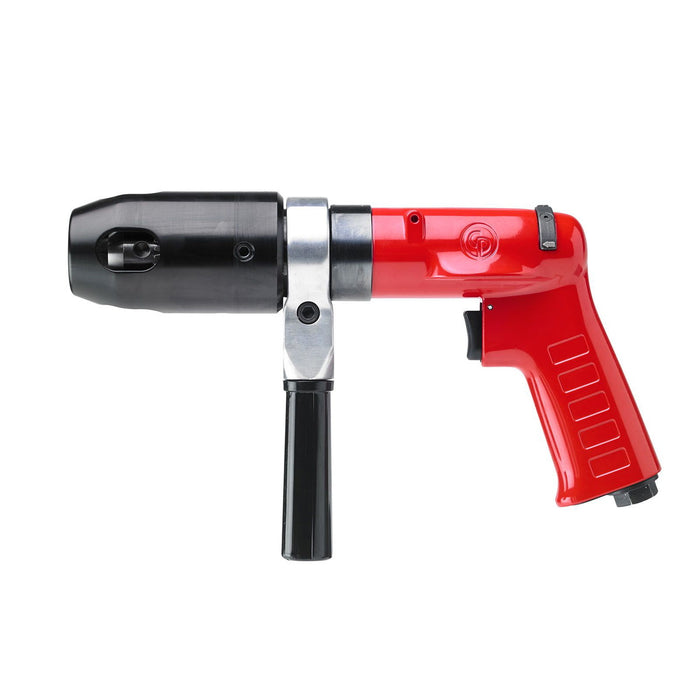

Chicago Pneumatic CP1114R05, 1/2" Air Drill - ATEX
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151580380
The Chicago Pneumatic CP1114R05 ATEX pistol reversible drill delivers the precision and safety demanded by professionals working in potentially explosive or hazardous environments. Built to ATEX certification standards, this cp air drill is engineered for industries where spark-free, intrinsically safe tooling is not just preferred - it is essential. The lightweight aluminium body keeps operator fatigue low during extended use, making it a smart choice for maintenance crews and production teams alike. Fitted with a 1/2 inch (13 mm) keyed chuck, the CP1114R05 accepts a wide range of standard drill bits and provides a secure, accurate grip that resists slippage under demanding conditions. The keyed chuck design ensures maximum bit retention and repeatability, which is critical when working to tight tolerances on metal, composite, or structural materials. The pistol grip handle delivers natural hand positioning and confident control, translating compressed air power into smooth, consistent drilling performance across every application. As a fully reversible chicago pneumatic air drill, this model handles both forward and reverse rotation, simplifying tasks such as thread tapping and fastener removal without the need to swap tools. The ATEX rated drill classification makes it the go-to solution for oil and gas facilities, chemical processing plants, refineries, and offshore platforms where hazardous atmosphere compliance is mandatory. From fabrication shops to live process environments, the CP1114R05 ATEX sets the standard for safe, reliable pneumatic drilling performance.Product Feature: High power 0.5hp (410W) with excellent control by teasing throttle handle high Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrations High quality ) industrial pistol drill with 3/8' (10 mm) to 1/2' (13 mm) Jacobs industrial keyed capacity chuck Versatile with a forward-reverse switch for easier drilling, reaming, tapping. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Chuck max capacity (in): 1/2
- Chuck max capacity (mm): 13
- Chuck type: Keyed
- Handle type: Pistol
- Main Material type: Aluminium
- Reversible: No
- Starting system: Trigger
- Trigger type: Progressive
- Sound Power: 93 dB(A)
- Sound Pressure: 82 dB(A)
- Uncertainty vibration-K: 1.1 m/s²
- Air consumption at load: 12 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Max power: 410 W
- Stall torque: 25.2 Nm
- Free Speed: 500 rpm
- Air consumption at free speed: 15 l/s
- Height (H): 151.7 mm
- Length (L): 278.1 mm
- Width (W): 57.4 mm
- Weight: 2 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
