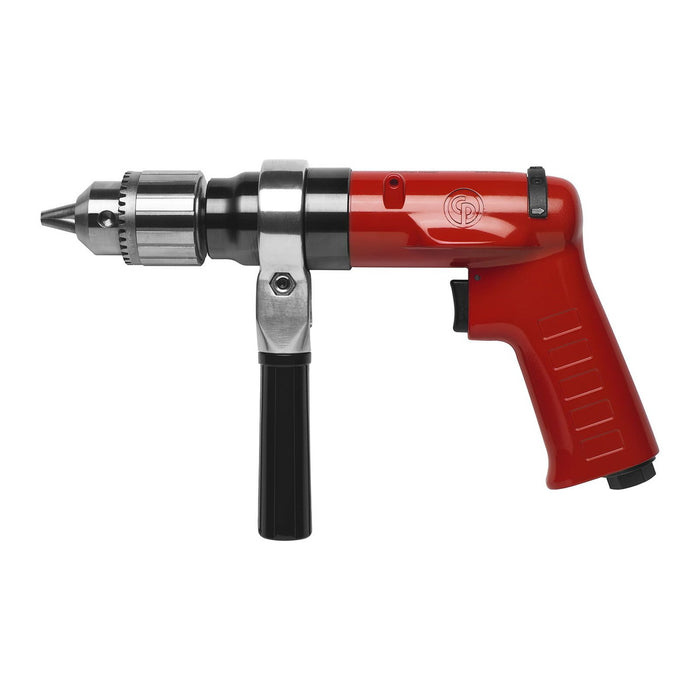

Chicago Pneumatic CP1114R05, 1/2" Air Drill
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151580310
The Chicago Pneumatic CP1114R05 delivers the precision and durability professionals demand from a reliable pistol grip reversible air drill, making it an essential addition to any production or maintenance toolkit. Built with a lightweight aluminium body, this chicago pneumatic air drill is engineered to reduce operator fatigue during extended use without sacrificing the robust build quality the brand is known for. Powered by compressed air, the CP1114R05 develops a solid 25.2 Nm of torque, giving users the driving force needed to tackle a wide range of drilling and fastening tasks with confidence. The 1/2 inch (13 mm) keyed chuck accommodates a broad selection of drill bits and accessories, ensuring versatility across different materials and applications. The pistol-style handle provides a natural, ergonomic grip that supports both accuracy and control, particularly valuable during repetitive operations. As a trusted cp air drill option, this model is designed to perform consistently in demanding industrial environments. Its reversible functionality adds further flexibility, allowing operators to back out fasteners or free a stuck bit with ease. The aluminium construction keeps the overall weight low while maintaining structural integrity under continuous use. The Chicago Pneumatic CP1114R05 is ideally suited for assembly lines, fabrication workshops, and general maintenance applications where a dependable cp 1 2 air drill is required to handle high-volume drilling tasks efficiently and reliably day after day.Product Feature: High power 0.5hp (410W) with excellent control by teasing throttle handle high Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrations High quality ) industrial pistol drill with 3/8' (10 mm) to 1/2' (13 mm) Jacobs industrial keyed capacity chuck Versatile with a forward-reverse switch for easier drilling, reaming, tapping. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Chuck max capacity (in): 1/2
- Chuck max capacity (mm): 13
- Chuck type: Keyed
- Handle type: Pistol
- Main Material type: Aluminium
- Reversible: Yes
- Starting system: Trigger
- Trigger type: Progressive
- Sound Power: 93 dB(A)
- Sound Pressure: 82 dB(A)
- Uncertainty vibration-K: 1.1 m/s²
- Air consumption at load: 12 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Max power: 410 W
- Stall torque: 25.2 Nm
- Free Speed: 500 rpm
- Air consumption at free speed: 15 l/s
- Length (L): 215 mm
- Weight: 1.3 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
