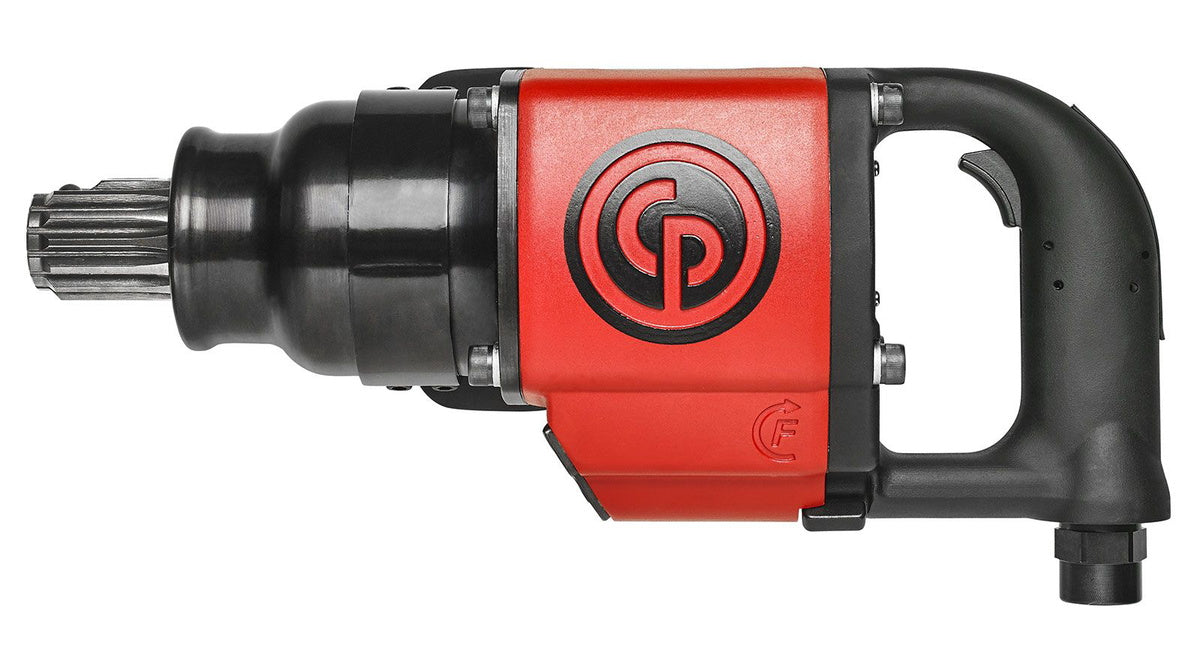

Chicago Pneumatic CP0611-D28L, 1" D-Handle Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151590170
The Chicago Pneumatic CP0611-D28L delivers the kind of raw, relentless power that heavy-duty professionals demand, combining an exceptional 2440 Nm maximum forward working torque with a staggering 3790 Nm reverse torque to break loose the most stubbornly seized fasteners with ease. Engineered for operators who refuse to compromise on performance, this chicago pneumatic impact wrench features a 5 Spline D-Handle configuration that provides superior grip stability and precise directional control, even in the most demanding industrial environments. Built to the exacting standards Chicago Pneumatic is renowned for, the CP0611-D28L operates across an impressively wide torque range, from a precise minimum of 1.22 Nm right through to its maximum output, giving the operator complete versatility across a broad spectrum of fastening tasks. The air inlet design ensures consistent, reliable pneumatic performance, making it an ideal cp impact wrench for workshops and job sites where sustained productivity is non-negotiable. Unlike compact alternatives such as the stubby air impact wrench category, this model is purpose-built for high-torque applications where sheer force and ergonomic control must work in tandem. Without torque limiting restrictions, it delivers full, unrestricted power output whenever the task demands it. The CP0611-D28L is the definitive choice for heavy vehicle maintenance, mining operations, and large-scale construction assembly work where only a best air impact wrench will meet the challenge.Product Feature: Reliable 2 jaws clutch mechanism for hard and soft joint applications Durable lightweight aluminium body Robust steel clutch housing for extreme durability 2-jaw clutch ensures progressive torque increase for high torque bolt disassembly applications with minimal vibration 360° rotatable side handle offers excellent grip for all applications About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 2440 Nm
- Max torque reverse: 3790 Nm
- Min working torque fwd: 1.22 Nm
- Torque limited: No
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 1 in
- Min hose diam (5 m hose length): 25 mm
- Sound Power: 110 dB(A)
- Sound Pressure: 99 dB(A)
- Uncertainty vibration-K: 4.1 m/s²
- Vibration (m/s²): 18
- Vibration: 18 m/s²
- Free Speed: 3500 rpm
- Air consumption at free speed: 55 l/s
- Length (L): 360 mm
- Side to Center: 46 mm
- Weight: 10.4 kg
- Blow per minute: 1020
- Body: Aluminium
- Clutch housing: Steel
- Clutch lubrication type: Grease
- Handle type: D-handle
- Impact mechanism: 2-jaws
- Output drive size (in): #5 Spline
- Output drive type: 5 Spline
- Output retainer type: Hole
- Side handle: Yes
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
