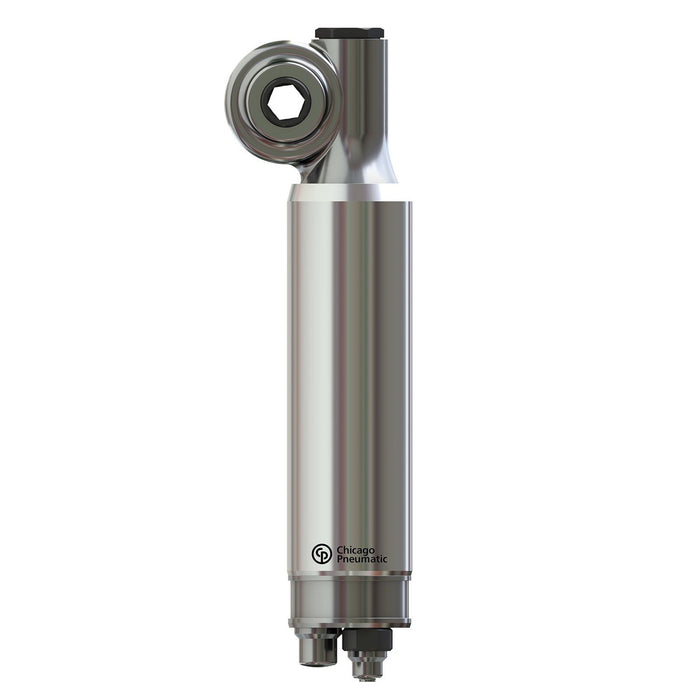

Chicago Pneumatic 2H410-90-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051473224
The Chicago Pneumatic 2H410-90-ATEX delivers reliable, explosion-safe rotational power for demanding industrial environments where flammable atmospheres are a constant concern. Engineered as a reversible vane air motor rated at 660 W, this pneumatic motor operates at a controlled 90 RPM output speed, making it ideally suited for applications requiring consistent low-speed torque rather than high-velocity cutting or grinding. Its ATEX certification ensures compliance with the strictest European hazardous location directives, giving engineers and procurement teams confidence when specifying air tools for Zone 1 and Zone 2 classified areas. The motor draws air at 10 l/s both at load and at maximum power, demonstrating efficient consumption across its operating range with minimal waste. Connection is straightforward via a 1/4-inch BSP air inlet thread, allowing integration into standard pneumatic supply lines without specialist adaptors. As an air-powered solution, the 2H410-90-ATEX eliminates the risks associated with electric motors in volatile atmospheres, offering inherent spark-free operation that no conventional pneumatic die grinder or air motor alternative without ATEX rating can match in certified hazardous zones. Built to Chicago Pneumatic's industrial-grade standards, this pneumatic motor suits OEM machinery builders, chemical processing plants, offshore platforms, and paint spray facilities where process safety and continuous-duty reliability are non-negotiable. It is the go-to choice wherever a certified, reversible air motor must perform consistently under load in potentially explosive surroundings.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 10 l/s
- Air flow max power: 10 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Max free speed range: 90 rpm
- Minimum starting torque: 102 Nm
- Torque at max power: 102 Nm
- Max output power: 0.7 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Reversible
- Spindle type: Hexagonal
- Starting system: None
- Weight: 2 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
