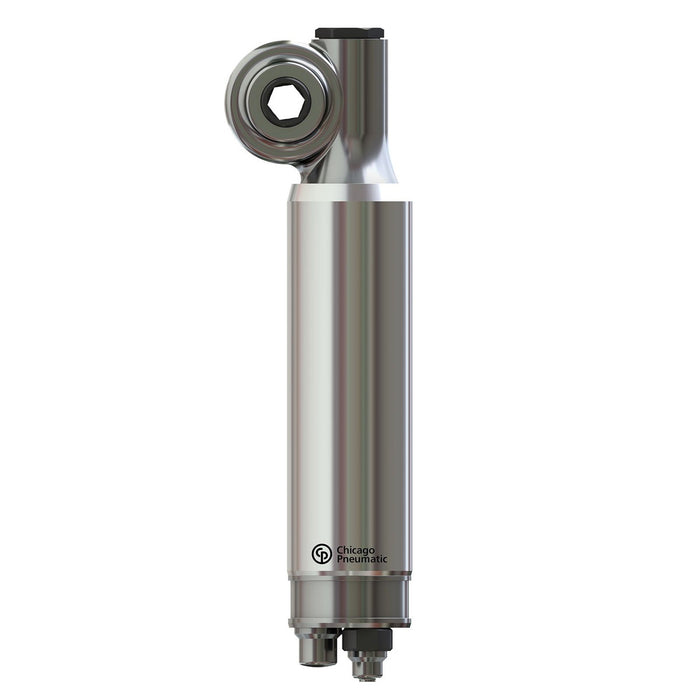

Chicago Pneumatic 2H410-60-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051473234
The Chicago Pneumatic 2H410-60-ATEX delivers reliable, explosion-safe rotary power in demanding industrial environments where standard air motors simply cannot be trusted. Engineered for hazardous locations and carrying full ATEX certification, this reversible vane air motor provides 660 W of consistent output at a controlled 60 RPM, making it an ideal pneumatic motor solution for applications where precision, low-speed torque, and operational safety must coexist without compromise. Connecting via a 1/4-inch BSP air inlet, the motor integrates seamlessly into existing compressed air systems found across oil and gas facilities, chemical plants, and pharmaceutical production lines. With an air consumption rate of 9 l/s at load and a matched maximum air flow of 9 l/s at peak power, it operates efficiently across its full working range, helping reduce energy costs without sacrificing drive performance. The reversible functionality further extends its versatility, allowing operators to quickly change rotation direction to suit varying process requirements on the floor. As a robust air motor built to Chicago Pneumatic's exacting quality standards, the 2H410-60-ATEX suits integration into conveyor drives, agitators, valve actuators, and any torque-sensitive assembly application operating within classified hazardous zones. Engineers and procurement teams sourcing dependable pneumatic motor solutions for ATEX-rated environments will find this unit a straightforward, proven choice that pairs safety compliance with genuine mechanical performance.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 9 l/s
- Air flow max power: 9 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Max free speed range: 60 rpm
- Minimum starting torque: 102 Nm
- Stall torque: 0 Nm
- Torque at max power: 102 Nm
- Max output power: 0.7 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Reversible
- Spindle type: Hexagonal
- Starting system: None
- Weight: 2 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
