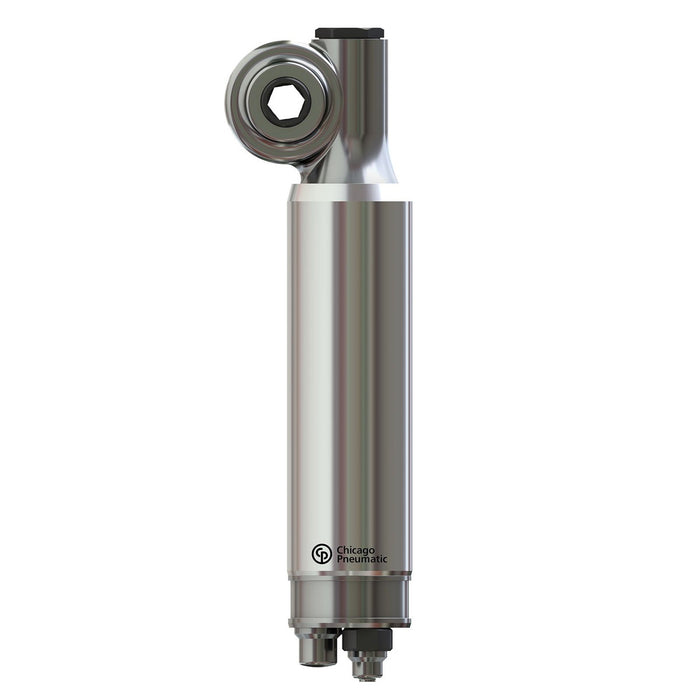

Chicago Pneumatic 2H410-500-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051473194
Delivering reliable, explosion-safe rotary power in the most demanding industrial environments, the Chicago Pneumatic 2H410-500-ATEX Reversible Vane Air Motor is engineered for facilities where flammable atmospheres demand uncompromising safety certification alongside genuine performance. Rated at 660 W and operating at 500 RPM, this robust pneumatic motor provides consistent, controllable torque output that suits applications requiring precise, low-speed rotational force without the risks associated with electrically powered alternatives. The ATEX certification makes this air motor an essential choice for oil and gas installations, chemical processing plants, and other hazardous area environments where standard equipment simply cannot be deployed. Its reversible operation adds operational flexibility, allowing engineers to run processes in both directions without additional tooling or setup. With an air consumption at load of 17 l/s and a matching maximum air flow for peak power, the motor performs predictably when connected to a properly sized compressed air supply via its 1/4-inch BSP inlet thread - a standard fitting that integrates smoothly into most industrial pneumatic networks. As a dependable pneumatic motor within the Chicago Pneumatic range, the 2H410-500-ATEX is well suited to powering conveyors, agitators, hoists, and custom machinery in zone-classified areas. Whether specifying air tools for hazardous site builds or replacing a worn unit in an existing system, this vane air motor delivers the safety compliance and steady power output that process engineers and maintenance teams can trust.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 17 l/s
- Air flow max power: 17 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 12 mm
- Max free speed range: 500 rpm
- Minimum starting torque: 39 Nm
- Torque at max power: 39 Nm
- Max output power: 0.7 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Reversible
- Spindle type: Hexagonal
- Starting system: None
- Weight: 1.7 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
