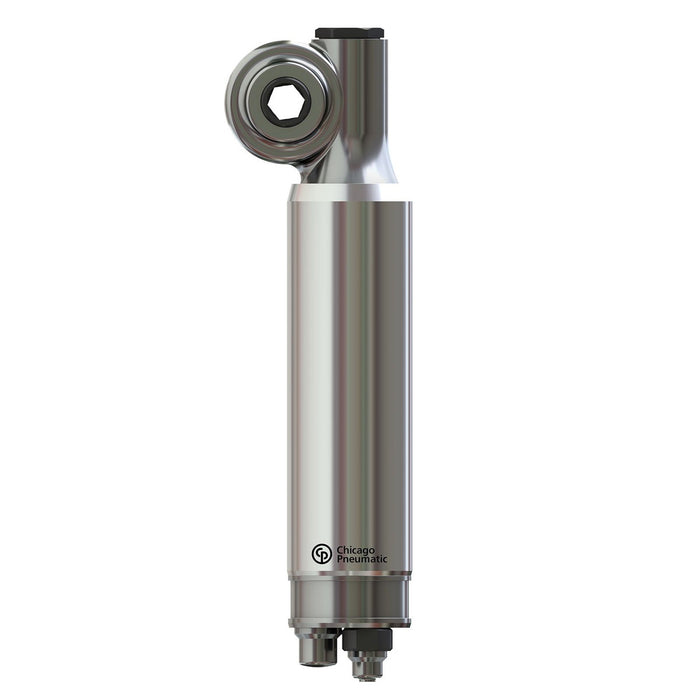

Chicago Pneumatic 2H410-350-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051473204
The Chicago Pneumatic 2H410-350-ATEX delivers reliable, explosion-safe performance in demanding industrial environments where conventional air motors simply cannot operate. Engineered to ATEX certification standards, this reversible vane air motor is purpose-built for use in potentially explosive atmospheres, giving engineers and maintenance teams the confidence to work safely in petrochemical, mining, and other hazardous locations without compromising on output. Producing a capable 660 W of power, this pneumatic motor runs at a maximum speed of 350 RPM, making it well suited to low-speed, high-torque applications. The motor draws an air consumption of 17 l/s at load, with maximum power air flow also rated at 17 l/s, ensuring consistent and predictable performance across extended duty cycles. Connection is straightforward via a 1/4-inch BSP air inlet, offering compatibility with standard industrial compressed air systems and reducing installation complexity on the workshop floor or in the field. As a reversible unit, the 2H410-350-ATEX allows operators to switch rotational direction with ease, adding versatility to a wide range of drive and actuation tasks. Unlike a typical air motor or pneumatic die grinder application running at high RPM, this model's lower speed output suits conveyor drives, agitator systems, valve actuators, and automated production equipment where controlled torque delivery is paramount. It is the preferred choice for facilities requiring certified air tools in Zone 1 and Zone 2 classified hazardous areas.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 17 l/s
- Air flow max power: 17 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 12 mm
- Max free speed range: 350 rpm
- Minimum starting torque: 51 Nm
- Torque at max power: 51 Nm
- Max output power: 0.7 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Reversible
- Spindle type: Hexagonal
- Starting system: None
- Weight: 1.7 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
