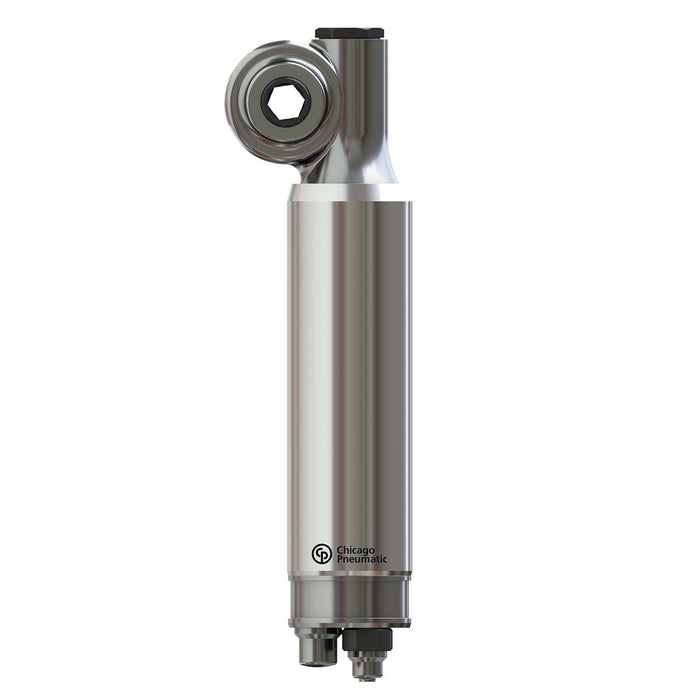

Chicago Pneumatic 2H410-150-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051473214
Delivering reliable, explosion-safe rotary power in demanding industrial environments, the Chicago Pneumatic 2H410-150-ATEX Reversible Vane Air Motor is a precision-engineered pneumatic motor built to perform where standard tools cannot. Its ATEX certification makes it the go-to choice for professionals working in hazardous atmospheres, including petrochemical plants, offshore platforms, and other classified zones where ignition risks must be eliminated without compromising productivity. Producing 660 W of continuous output power, this air motor delivers consistent torque at 150 RPM, making it ideally suited for controlled-speed applications requiring steady, repeatable performance. The reversible vane design allows operators to switch rotation direction with ease, adding versatility across a broad range of drive and assembly tasks. Air consumption at load runs at 17 l/s, matching the air flow at maximum power, which allows for straightforward compressor sizing and efficient system planning. The 1/4-inch BSP air inlet thread ensures compatibility with standard pneumatic tooling setups commonly found across European industrial facilities. As a robust pneumatic motor from Chicago Pneumatic's trusted industrial range, the 2H410-150-ATEX integrates seamlessly into custom-built air tools and automated machinery. Engineers and maintenance teams sourcing an air motor for hazardous-area drilling, mixing, or conveyor drive applications will find this unit delivers the safety compliance, power density, and long service life their operations demand. It is a dependable core component for any ATEX-rated pneumatic system build.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 17 l/s
- Air flow max power: 17 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 12 mm
- Max free speed range: 150 rpm
- Minimum starting torque: 102 Nm
- Torque at max power: 102 Nm
- Max output power: 0.7 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Reversible
- Spindle type: Hexagonal
- Starting system: None
- Weight: 2 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
