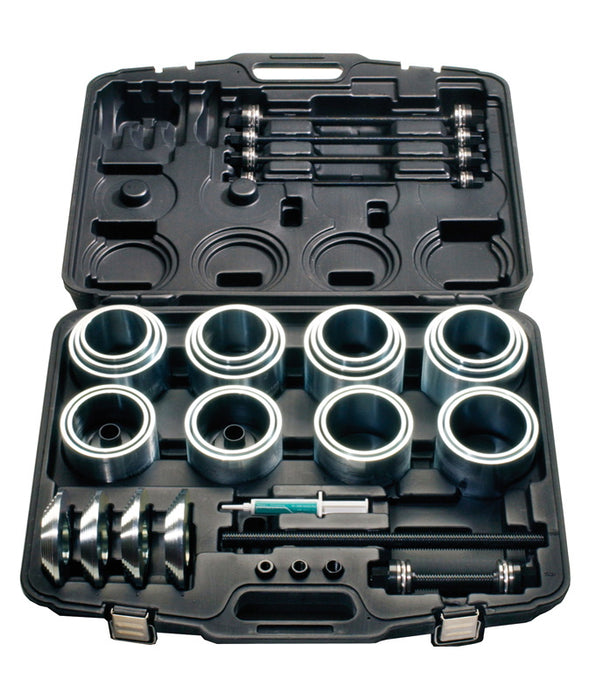

Sykes Pickavant 08797500 PRESS & PULL SLEEVE KIT - MASTER XL

Product Number: 08797500

A universal system for the removal and installation of Suspension Bushes, Bearings, Seals etcBy selecting the appropriate diameter sleeves, the bush / bearing / seal is ËœPressed, or ËœPulled by the action of turning the spindle nuts in opposing directions.Fully universal applications for Cars, LCVs HGVs etc, with a range of kit options to suit individual requirements. Press Pull Sleeve Kits can be used in the following formats: As a stand alone set of tools With a standard workshop press With a Universal Press Frame (187000V2) With a Universal C Clamp (18780200) Can also be used with selected model specific Press Piece sets and in conjunction with optional hydraulic upgrade kits Complete kit for SUV, LCV, PSV, HGV Contains 20x Press Sleeves in 2mm diameter steps Inside Diameter Range: 74 - 112mm in 2mm steps Outside Diameter Range: 84 - 122mm in 2mm steps 4x Step Plate Discs / 4x Pulling Spindles with nuts thrust bearings M10 / M12 / M14 / M16 2 x 20mm Heavy Duty Pulling Spindles (M20 long M20 short) with thrust bearings Supplied in moulded storage case All components are available individually as spare parts, for full list of spare parts please see spare parts section or instructions in the downloads section.
