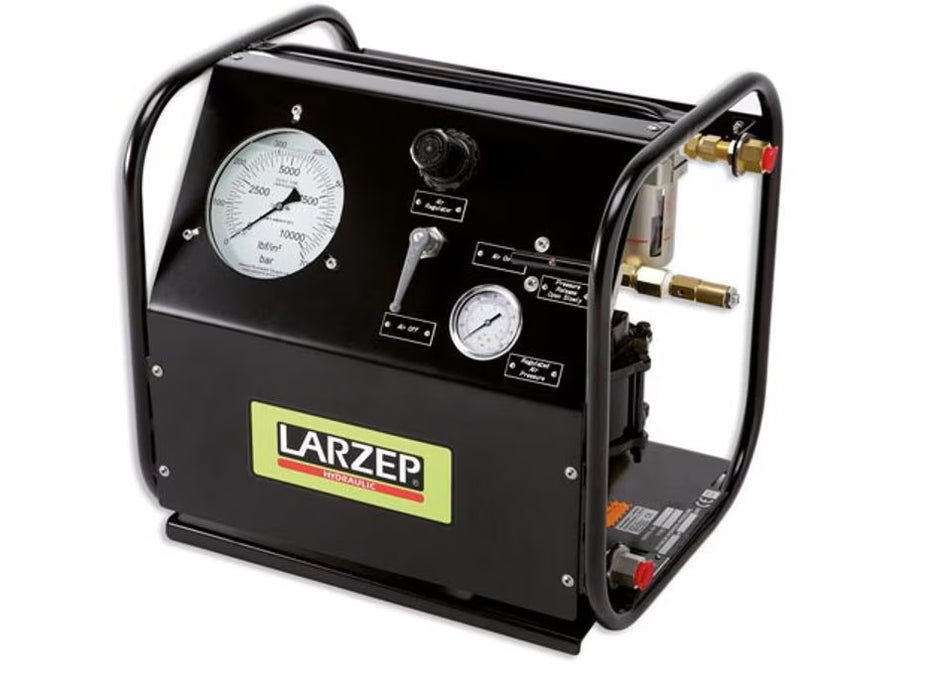

Larzep HAP0250, Air Driven Hydrotest Pump, 250 bar Operating Pressure with Air at 6.9 bar, Operate with water or oil
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: HAP0250
Model: HAP0250 Series: Larzep Product Line: Industrial Tools. Product Features Engineered and designed for easy operation. Compact and lightweight steel frame for full protection and handling. Fully integrated, protected and calibrated pressure gauge. Clearly labelled controls for improved safety. Supplied with air inlet connector, air filter, air pressure regulator, air lubricator, air pressure gauge, air pressure limit valve, pump on/off control, oil pressure gauge. Can work with water or oil. Supplied complete with a full test certificate as standard. High pressure fittings and any length of high pressure hose available from stock. Hydraulic Pressure Gauge: Dual scale bar/psi Oil / Water Reservoir: 7 litres Working Air Pressure: 1,7 to 6,9 bar Air Inlet Port: 1/2" NPTF Female Air Consumption: 0,79 m3/min Sound Level: 90 dBA Weight: 30 kg
-
- Maximum Operating Pressure (bar): 250
- Operating Pressure (bar) with Air at 6.9 bar: 250
- Operating Pressure (bar) with Air at 5.1 bar: 200
- Operating Pressure (bar) with Air at 4.1 bar: 150
- Output Flow Rate (l/min) at 20% Max. Pressure: 4.1
- Output Flow Rate (l/min) at 50% Max. Pressure: 3.1
- Output Flow Rate (l/min) at 80% Max. Pressure: 2.0
- Air Consumption (m3/min): 0.79
- Reservoir Capacity (litres): 7
- Air Pressure Range (bar): 1.7 - 6.9
- Sound Level (dBa): 90
- Outlet Port Female: 3/8” NPT
- Air Inlet Port Female: 1/2" NPTF
- Weight (kg): 30
-
New Grade - 24 Months Warranty from purchase is available on this product.
