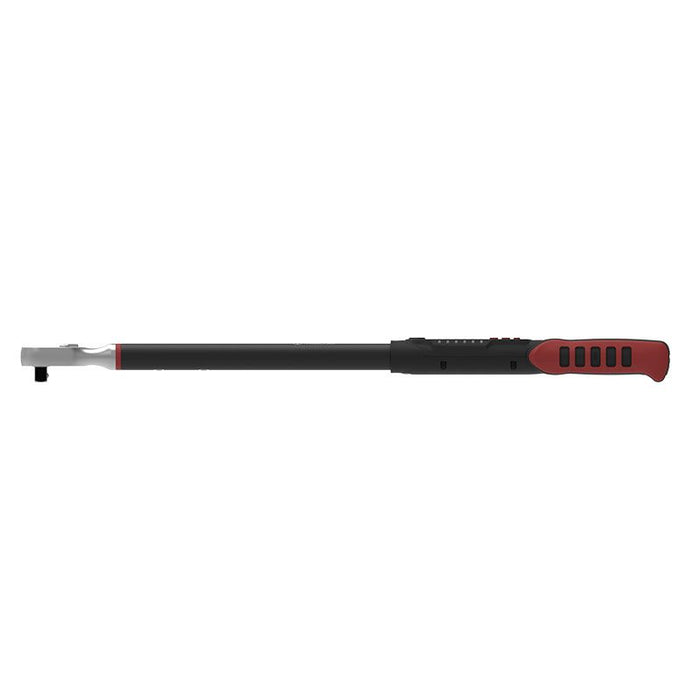

Chicago Pneumatic CP8918TC, Series Etorque Wrench, 340 Nm Torque- 8941089181
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941089181
To further extend our range of high precision, cordless torque tools, Chicago Pneumatic is introducing the CP89 Series of Digital Torque Wrenches. The CP8918TC is a 1/2€� drive model covering a torque range of 34Nm (25 ft/lb) to 340Nm (250 ft/lb) at +/- 2% accuracy. The CP8918TC features Torque and Angle measurement, P-Sets, Sequencing, Torque Check, Re-Hit Detection, and reporting via the CPLinQ application. CP89 Series eTorque Wrench delivered with USB Connection Cable, Calibration Certificate, Molded Plastic Case, Removable Foam Insert. Product Features: CPLinQ compatiability high precision Robust gear system accurate up to 25,000 cycles 12 LED progressive light display Powerful vibration motor to alert operator Soft grip, non-slip handle
-
- Type class: Type I, Class 3
- Feedback type: Acoustic Buzzer and 2x6 Leds
- Max torque: 340 Nm
- Min torque: 34 Nm
- Overload Torque (%): 10
- Overload torque: 20 Nm
- Height (H): 45 mm
- Length (L): 629 mm
- Width (W): 44 mm
- Lever arm length: 555 mm
- Side to Center: 20.5 mm
- Weight: 1.5 kg
- Subfamily: Digital torque wrenches
- Battery type: AA Batteries
- Max Ambient Operating Temperature: 40 °C
- Min Ambient Operating Temperature: -10 °C
- Angle accuracy (%): ±2 degree (rotating 90° at angular speed of 30°/s)
- Angle measure: Yes
- Tightening direction: CW Only
- Tightening strategies: No
- Accuracy (ID accuracy_measurement tool) (%): ±2% (CW)
- Autonomy (h): 8h
- Communicating: Yes
- Communication type: Bluetooth
- Compliance: ISO 6789 - 2017
- Curves memory capacity: N/A
- End-fitting management: No
- Output drive size (in): 1/2
- Output drive type: Sq
- Quality strategies: Yes
- Results memory capacity: 2000
- Unit measurement supported: Nm, ft/lb
-
New Grade - 24 Months Warranty from purchase is available on this product.
