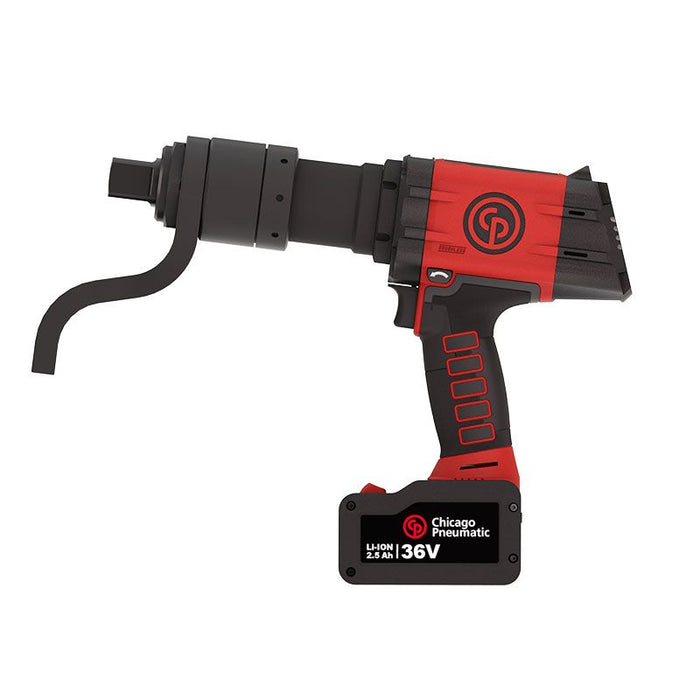

Chicago Pneumatic CP8609C PACK 36V 2.5AH, 1" Battery Torque Wrench Connected, 15 Rpm Free Speed- 6151571130
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151571130
Torque tightening from 250 Nm / 185 ft.lb to 900 Nm / 665 ft.lb with high precision (+/- 4%) and angle tightening. Intuitive handling on digital screen of the tool or via CPLinQ app. Pack includes 1 S type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case. Product Features: High precision with +/- 4% Safe tightening with second start button as standard Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app Features- CPLinQ app for better control (only on C, CQ and TC versions) and traceability of your process (only on CQ and TC versions). Angle tightening (only on C, CQ and TC versions) Counting sequence to avoid missed tightenings (only on CQ and TC versions) Torque Check to control bolt loosening over time (only on TC version) Automatic reaction arm release to avoid tool to stay blocked on the application
-
- Sound Power (dba): <83
- Sound Power: 69 dB(A)
- Sound Pressure: 58 dB(A)
- Uncertainty vibration-K: 0.5 m/s²
- Vibration (m/s²): <2.5
- Vibration: 0.4 m/s²
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 341 mm
- Width (W): 77 mm
- A: 33 mm
- B: 67 mm
- C: 153 mm
- D: 171 mm
- E: 89 mm
- F: 32 mm
- I: 117 mm
- J: 67 mm
- K: 76 mm
- M: 34 mm
- Power weight ratio: 180 Nm/kg
- Side to Center: 33.5 mm
- Weight: 4.2 kg
- Weight without reaction arm: 4.2 kg
- Weight with reaction arm: 4.86 kg
- Free Speed: 15 rpm
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 250 Nm
- Recommended Torque: 720 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: S-type
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
