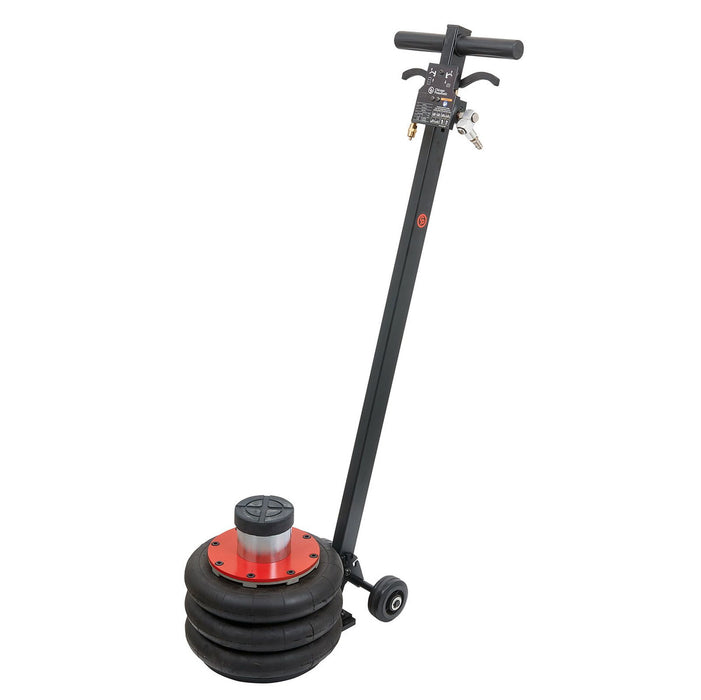

Chicago Pneumatic CP88232, Balloon Jack 2 Tonne – 8941088232
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941088232
The CP88 series pneumatic balloon is built with a high-resistance diaphragm and an internal telescopic guide with a large base that can guarantee excellent stability and operational safety. This balloon jack can be used on column lifts. Supplied with 1 extension: 60 mm/80 mm height. Chicago pneumatic pneumatic balloon jacks are CE, TUV, and ASME certified to bring quality and safety in work places. The CP88 series has 3 2-ton capacity models with 3 different lifting capacities from 430 to 560 mm.Product Feature: Highly resistant diaphragm, internal telescopic guide, and overload safety valve for high operational safety. From 1.4 foot to 1.8 foot with extension capacity for high lifting On/off ergonomic lever and 360 air inlet swivel for quick and easy up/down positioning 4.5 inches to 7.8 inches in uninflated position that is ideally adapted for low profile vehicles 3 position adjustable handle and durable composite wheels maximize easy, quick positioning under vehicles
-
- Max working pressure: 10 bar
- Min working pressure: 7 bar
- Extension height (mm): 60
- Max height with extension: 560 mm
- Min height: 200 mm
- Stroke: 300 mm
- Max Lifting Capacity: 2 ton(s)
- Wheel type: Nylon
-
New Grade - 24 Months Warranty from purchase is available on this product.
