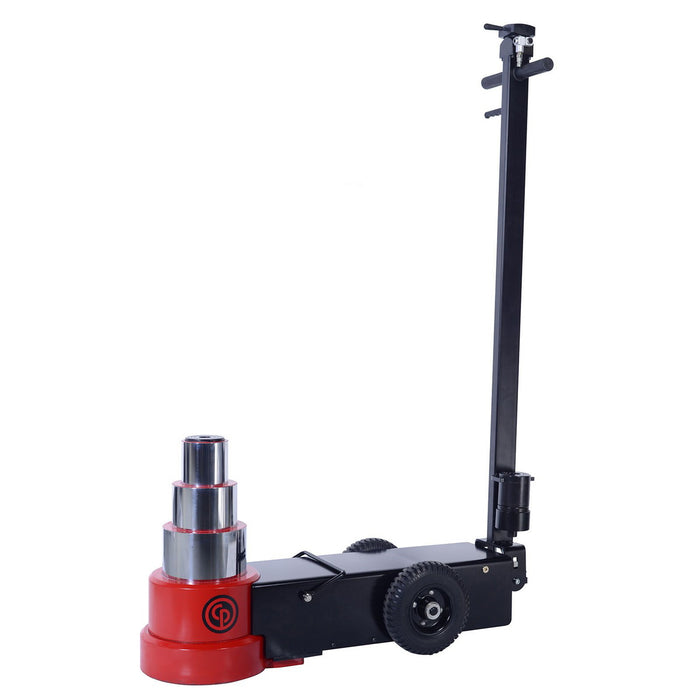

Chicago Pneumatic CP85100, 100 Tonne Air Hydraulic Jack
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941085100
The Chicago Pneumatic CP85100 delivers the lifting power and dependability that busy workshops and professional technicians demand, combining robust 100-tonne hydraulic force with convenient air-powered operation to dramatically reduce manual effort on heavy lifting tasks. Engineered to perform consistently between 9 and 12 bar working pressure, this air jack provides smooth, controlled lifts with minimal operator fatigue, making it an essential addition to any high-throughput service bay. Built to handle demanding commercial and industrial environments, the CP85100 operates as a true 10 ton air jack, offering a maximum lift height of 610 mm when the saddle extension is fitted, with the extension itself measuring 45-75 mm to accommodate varying vehicle clearances and underbody configurations. The air powered jack design allows rapid, repeatable lifts using a standard workshop air supply, eliminating the slow, repetitive pumping associated with manual alternatives and keeping downtime to a strict minimum. The pneumatic jack mechanism integrates seamlessly with existing air jack pump infrastructure, meaning workshops already running compressed air systems can put this unit to work immediately without additional investment. Its solid construction reflects Chicago Pneumatic's commitment to professional-grade tooling, ensuring long service life even under frequent daily use. Ideal for truck maintenance facilities, fleet operators, agricultural workshops, and heavy vehicle service centres, the Chicago Pneumatic CP85100 is the dependable 10 ton trolley jack solution for professionals who cannot afford delays and refuse to compromise on lifting safety or performance.Product Feature: Air powered piston for fast, high lift capacity on high-axle vehicles Hard chromium plated piston guarantees durability and resistance to corrosion Low profile construction allows easy access to lift low chassis trucks and buses Long handlebar allows easy access and control when fully positioned under vehicle. Handlebar locks in 3 positions: 45°, 90°, and 180° for easy manoeuvring. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working pressure: 12 bar
- Min working pressure: 9 bar
- Extension height (mm): 45,75
- Max height with extension: 610 mm
- Min height: 215 mm
- Lifting capacities (tonne): 100,32,60
- Main Material type: Steel
- Max Lifting Capacity: 100 ton(s)
- Wheel type: Rubber
-
New Grade - 24 Months Warranty from purchase is available on this product.
