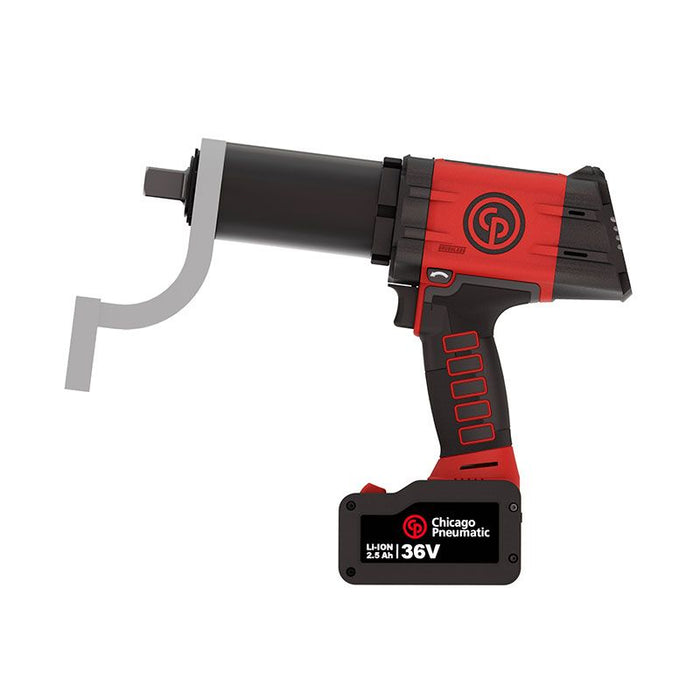

Chicago Pneumatic CP8613 WOB PACK 36V 2.5AH, 3/4" Battery Torque Wrench without reaction arm, 10 Rpm Free Speed- 6151570340
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570340
Torque tightening from 300 Nm / 220 ft.lb to 1300 Nm / 960 ft.lb with high precision (+/- 4%). Intuitive handling on digital screen of the tool. Product Features: High precision with +/- 4% Safe tightening with second start button as standard Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app Features- CPLinQ app for better control (only on C, CQ and TC versions) and traceability of your process (only on CQ and TC versions). Angle tightening (only on C, CQ and TC versions) Counting sequence to avoid missed tightenings (only on CQ and TC versions) Torque Check to control bolt loosening over time (only on TC version) Automatic reaction arm release to avoid tool to stay blocked on the application
-
- Sound Power (dba): <72
- Sound Power: 72 dB(A)
- Sound Pressure: 83 dB(A)
- Vibration (m/s²): <2.5
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 318 mm
- Width (W): 77 mm
- A: 32 mm
- B: 63 mm
- C: 130 mm
- D: 148 mm
- E: 89 mm
- F: 32 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- M: 35 mm
- Power weight ratio: 350 Nm/kg
- Weight: 3.7 kg
- Weight without reaction arm: 3.7 kg
- Free Speed: 10 rpm
- Max torque in forward: 1300 Nm
- Max torque reverse: 1300 Nm
- Min torque in forward: 300 Nm
- Recommended Torque: 1040 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Hole
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
